Technical Data:

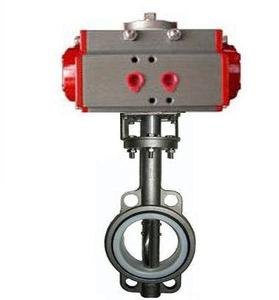

Pneumatic Actuated Flange Butterfly Valve |
Product Model | D671X-10/16 |
Nominal Diameter | DN40~400mm |
Nominal Pressure | PN1.0~1.6mpa |
Suitable Medium | water, gas,oil,etc |
Suitable Temperature | -23°c~121°c |
Features:
1. Novel and reasonable design, unique structure,light in weight, quick open and close
2. Small operating torque,convenient operation,labor-saving
3. can be installed at any position, easy maintenance.
4. sealing parts can be replaced and sealing effect can no leakage.
5.sealing material is old-resistance,corrosive-resistance, long service life ,etc
Implentation Standards:
Flange Connection size: GB/T9113.1-2000; GB/T9115.1-2000;JB78
Structure Length: GB/T12221-1989
Pressure Test: GB/T13927-1992;JB/T9092-1999
BIKVALVE company specializes in the production of ball valves, butterfly valves, check valves, globe valves and other valves. In the field of valves, company Poke has a rich design and production experience. All products pass through special processing equipment and meets international standards of reliability and safety. The company already has fifteen years of experience, provides customers with design solutions in various areas such as oil, chemical, gas and other fields of industry. One priority advantage of the company bikvalve is the extension of the partnership not only with China, but also with foreign countries. Our products have reasonable prices, while providing our customers with the highest quality products. The company has the possibility of fast delivery of goods.
We are able to quickly fulfill the requirements and desires of the customer! We are very glad to offer the services to meet the requirements of our clients!
