| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Type | Power | Ampere |
Capacitor (µF) |
R.P.M |
Q.max (l/min) |
H.max (m) |
S.Head (M) |
N.W(kg) | PACKAGE DIMENSION&GW | |||||
| HP | kW |
220V-1 50Hz |
A | B | H | Kg | ||||||||
| SCM2-45 | 1 | 0.75 | 5 | 20 | 2850 | 100 | 35 | 9 | 18.8 | 380 | 210 | 240 | 19.5 | |
| SCM2-52 | 1.5 | 1.1 | 7.5 | 30 | 2850 | 130 | 46 | 9 | 23.5 | 415 | 245 | 290 | 24.3 | |
| SCM2-55 | 2 | 1.5 | 9.6 | 30 | 2850 | 140 | 52 | 9 | 24.5 | 415 | 245 | 290 | 25.5 | |
| SCM2-65 | 3 | 2.2 | 13.5 | 45 | 2850 | 200 | 60 | 9 | 31 | 480 | 290 | 350 | 32.2 | |
| SCM2-75 | 4 | 3 | 0 | 0 | 2850 | 240 | 70 | 9 | 39 | 480 | 290 | 350 | 40.5 | |
| SCM2-85 | 5.5 | 4 | 0 | 0 | 2850 | 260 | 84 | 9 | 42.5 | 480 | 290 | 350 | 43.8 | |
| SCM2-95 | 7.5 | 5.5 | 0 | 0 | 2850 | 280 | 90 | 9 | 62 | 480 | 290 | 350 | 64 | |

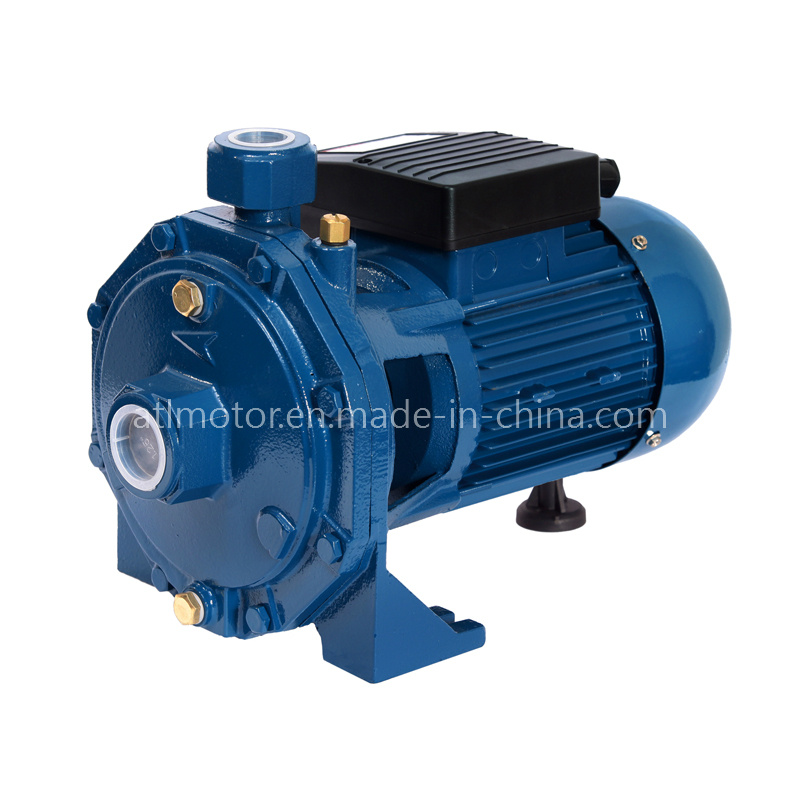

| Prod Model: | SCM2 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pump Body: | Cast Iron |
| Motor Housing: | Aluminum/Cast Iron |
| Shaft: | 45#Steel /Stainless Steel |
| Impeller: | Brass |
| Motor: | Closed, Externally Ventilated |
| Protection Class: | IP44 /IP54 |
| Insulation Class: | B/F |
| Duty: | Continuously Rated |
| Mechanical Seal: | Ceramic Steatite/ Metalized Carbon |
| Power: | Electric |
| Structure: | Multistage Pump |
| Theory: | Centrifugal Pump |
| Type: | Blade Pump |
| Application: | Clarified Water Pump |
| Material: | Cast Iron |
