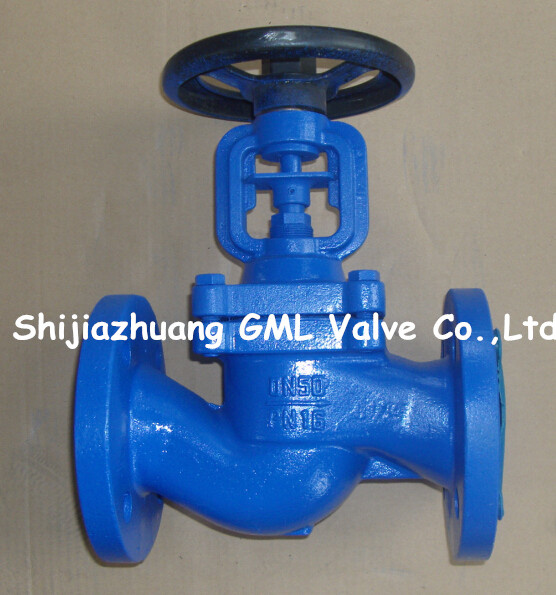

Main parts and materials :
1 . Body & Bonnet : Grey iron GG25
2 . Disc :A105+2Cr13, GG25+2Cr13
3 . Stem :Stainless steel
4 . Seat Ring : Stainless steel
Pressure: PN16
Dimeter: DN15-300
Standards :
Face to Face : DIN3202-F1
Flange End :DIN2532/2533
Test :
Nominal Pressure(MPa) : 1.6
Shell Test(MPa): 2.4
Seal Test(MPa) : 1.8
Nominal diameter(MM): DN15-300
Normal Feature
Size Range | NPS2"~16" DN50~200mm |
| Pressure | PN40 |
| Material | WCB,WC6,LCB,WC9,CF8,CF8M,CF3 and CF3M |
| Connection | Flanged, |
| Feature | Full Bore, streamline, through way, bellow sealed |
| Temperature | -160ºC~550ºC |
| Actuator | Hand wheel |
| Application | Oil and gas pipeline,Drainage system,Chemical Plant |
Manufacture Standard
Design standard | DIN 3356-82 |
| Face to face | DIN3202 |
| Flanged End Connection | DIN2543-DIN2546 |
| Inspection and test | DIN3230-75 |
