Product Explanation:

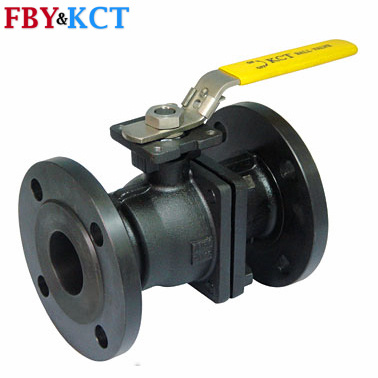

DIN Series Flanged Ball Valve
Detailed Product Description
Flaoting Ball alve
Two-piece Body, Floating Ball, Buint-in ISO5211 direct mounting pad
Full silicasol technology
Full bore, Blow-out Proof Stem
Fire safe design
Anti-static devices for ball-stem body
Double stem sealing to comply with TA-LUFT requirements
Pre-Load 2 belleville washer to self-adjust packing
Material: WCB, CF8(304) CF3(304L) CF8M(316) CF3M(316L)
Standards Application
Design and Manufacture: DIN3357/1 EN12516-1

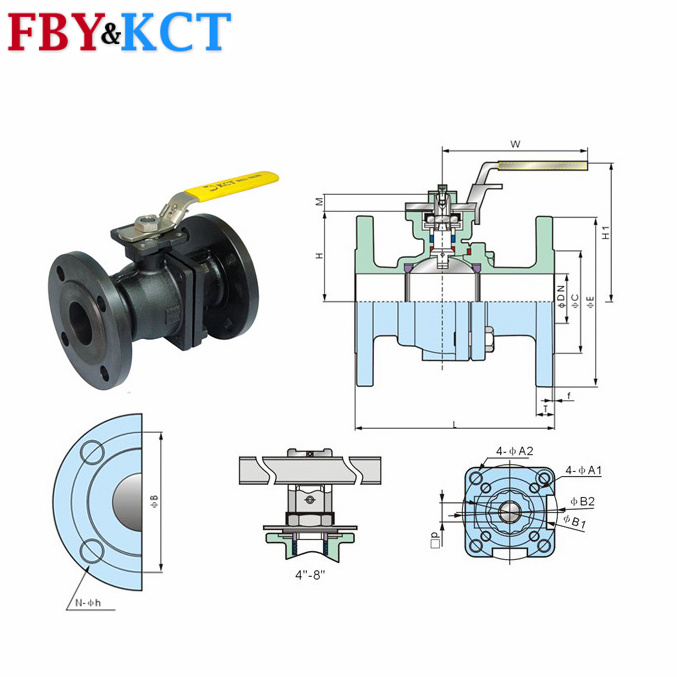

Face to face(end to end): DIN3202 F1(DN15-DN100) F7(DN125-DN200)
Flanged connection: DIN2545 EN1092
Fire-safe: API 607, 4th 1993
Test and inspection: DIN3230/3 EN12266
No. | Parts Description | Material |
1 | Body | CF8M | CF8 | WCB | Ti |
2 | Bonnet | CF8M | CF8 | WCB | Ti |
3 | Ball | SS316 | SS304 | Ti |
4 | Seat | PTFE RPTFE PPL |
5 | Nut | A193-B8 | A193-B7 | A193-B8 |
6 | Stem | SS316 | SS304 | 2Gr13 | Ti |
7 | Anti-Static | SS304 |
8 | Thrust Washer | PTFE Expanded Graphite |
9 | Packing | PTFE Expanded Graphite |
10 | Transition Washer | RPTFE Expanded Graphite |
11 | Packing Ring | SS304 |
12 | Belleville Washer | SS304 |
13 | Nut | SS304 |
14 | Loose Resistant Cover | SS304 |
15 | Nut | SS304 |
16 | Handle (1/2" ~3" ) | SS304 |
17 | Handle Cover (1/2" ~3" ) | Plastic |
18 | Stop Plate (1/2" ~3" ) | SS304 |
19 | Seal Washer | PTFE Expanded Graphite |
20 | Steel Tube (4" ~8" ) | Galvanizde Steel Tube |
21 | Spanner (4" ~8" ) | CF8 |
22 | Stop Bolt | SS304 |
