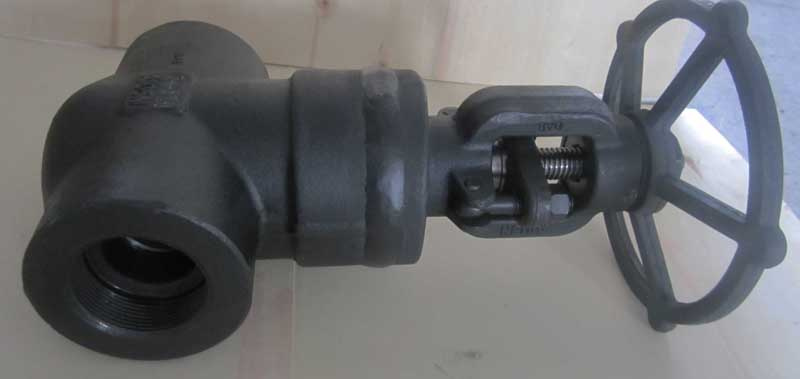

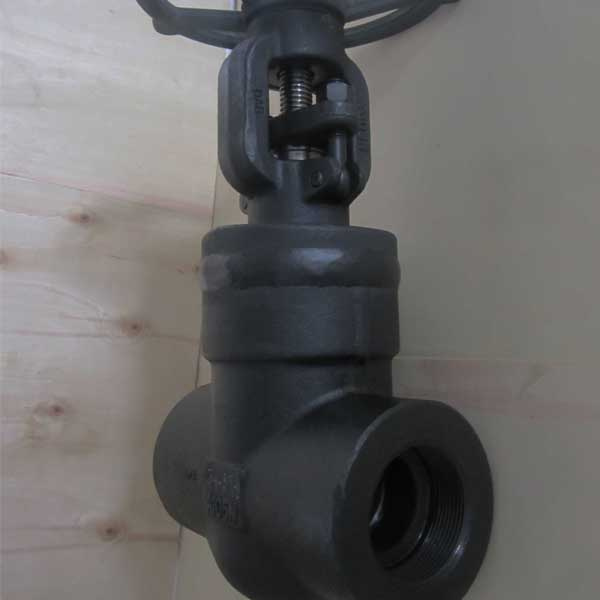

Welded Bonnet Threaded End Forged Steel Gate Valve

Welded Bonnet Threaded End Forged Steel Gate Valve
Price: US $ 22-23/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: T/T
Forged gate valves are available in Bolted BonnetWelded Bonnet & Pressure Seal Bonnet type for your option.

Standards:
Design Standard: API 602 / ASME B16.34 / BS5352
Testing Standard: API 598
Face to face according to ASME B16.10

Connection Standards:
NPT according to  ANSI / ASME B1.20.1
SW according to  ANSI / ASME B16.11
Flange according to ANSI / ASME B16.5
Butt-welded according to ANSI / ANSI B16.5
Marking MSS SP25
Pressure Class:  from Class150 to Class4500
Size from 1/2"  to 3"

Main Materials:
A105; LF2; F5; F11; F22; 304L; 316L; F347; F321; F51; Monel; 20 alloy, etc.


Features:
Outside Screw and Yoke (OS&Y)
Self aligning two piece packing gland
Spiral-wounded gasket
Integral backseat
Integral body flanges






NO.Part NameCS to ASTMAS to ASTMSS to ASTM
Type A105Type F22Type F304(L)Type F316(L)
1BodyA105A182 F22A182 F304(L)A182 F316(L)
2Seat RingA276 420A276 304A276 304(L)A276 316(L)
3WedgeA276 430&410A182 F304A182 F304(L)A182 F316(L)
4StemA182 F6A182 F304A182 F304(L)A182 F316(L)




6BonnetA105A182 F22A182 F304(L)A182 F316(L)
7Bonnet BoltA193 B7A193 B16A193 B8A193 B8M
8PinA276 420A182 F304
9GlandA276 410A182 F304(L)A182 F316(L)
10Gland EyeboltA193 B7A193 B16A193 B8A193 B8M
11Gland FlangeA105A182 F11A182 F304(L)A182 F316(L)
12Gland NutA194 2HA194 4A194 8A194 8M
13Yoke NutA276 420
14H.W.Lock NutA194 2HA194 4A194 8A194 8M
15NameplateSS
16HandwheelA197
17Bearing GasketA473 431
18Stem PackingFlexible GraphitePTFE

Prod Model: THBBFSZ41H
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

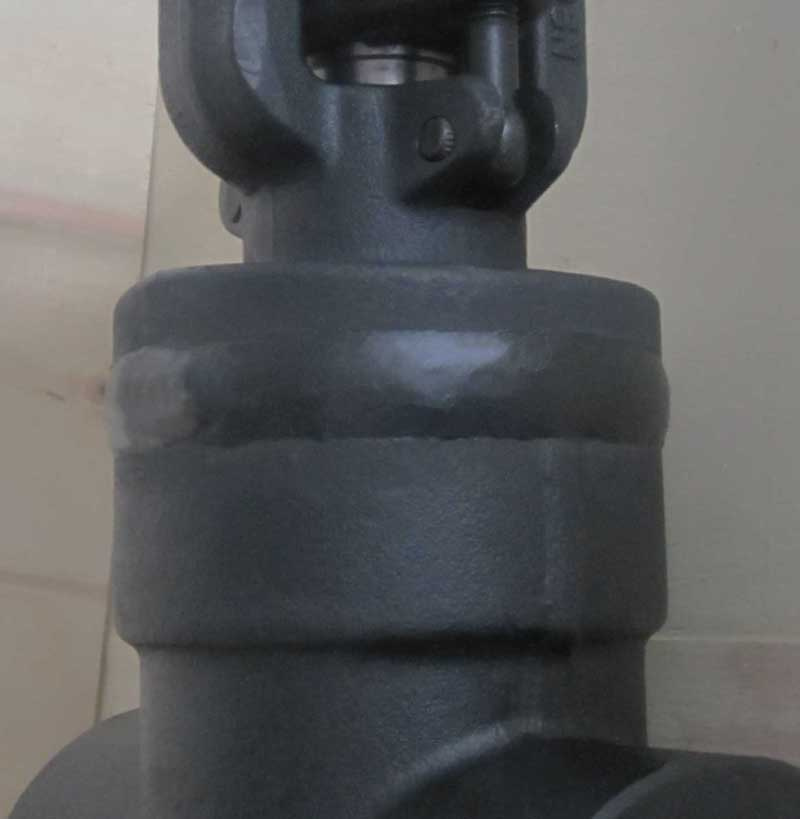

Body And Bonnet: Welded

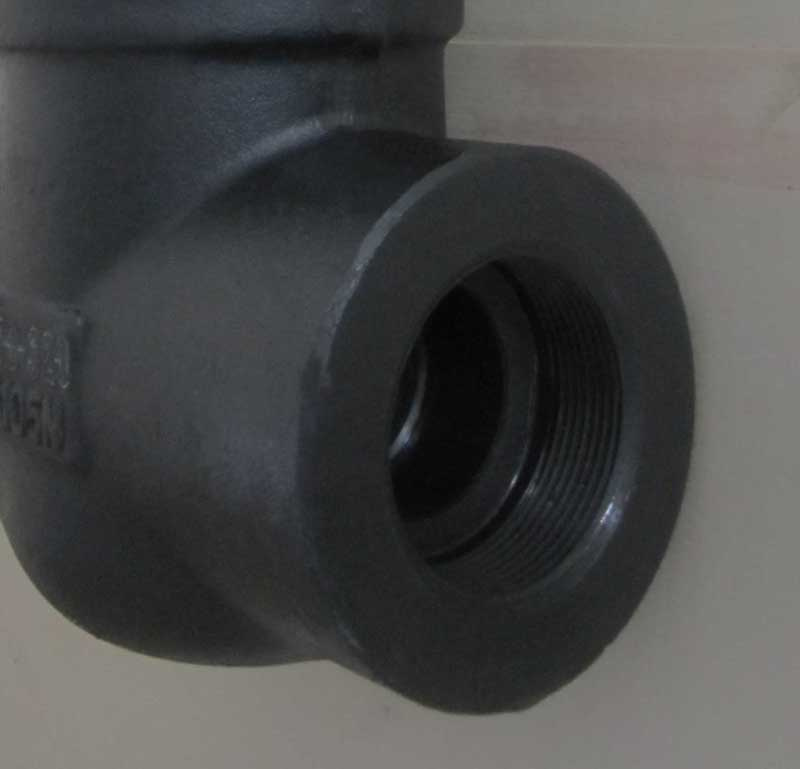

Connection Form: Thread
Material: Carbon Steel
Seal Surface: Wedge Gate Valve
Thread Position Of Valve Rod: Outside Gate Valve
Application: Industrial Usage
Yongjia Taihong Valve Co., Ltd. (THV VALVE) is a professional high pressure valves manufacturer for application primarily in the petrochemical industry. Our product range consist of GATE VALVES, GLOBE VALVES, CHECK VALVES, BALL VALVES, BUTTERFLY VALVES & STRAINERS. All valves are designed, manufactured and tested according to the latest manufacturing specifications of the American and International Standards Organizations.

We possesses extrusion dies heat mechanical processing, welding, assembling, testing, etc. facilities. And also our company has a strong CAD design team and a professional QC team. Our strong production equipments and perfect testing means can effectively improve product quality and be sure users' interests.

THV VALVE has obtained certificates of ISO9001: 2008 and CE. All valves are with features of advanced structure, consummate production technology, complete specifications, good quality, etc. To satisfy the requirements of purchasing different types of valves from customers, we have established a trading department to purchase good quality products for our customers. All suppliers are listed in our SUPPLIER LIST after strict quality examining, and our QC will do inspect from raw materials to finished products, to ensure all specifications or requirements will not occur problems.

Quality first is our commitment, and competitive price and timely delivery are our promise. Our customers have trusted us to provide them with reliable valve products to meet their most severe and critical requirements. We welcome customers worldwide to build mutually beneficial network, and we are looking forward to cooperation with you on the successful road to create brilliant!
