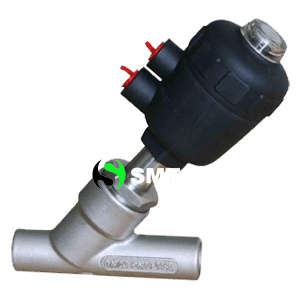

Welded Joint Type of Angle Seat Valves

Welded Joint Type of Angle Seat Valves
Price: US $ 1/Piece
Trade Terms: others
Min Order: 50/Piece
Pay Type: T/T,Paypal,Western Union
Full stainless steel Angle Seat Valve

Type: Double acting, single acting

Port: 1/8"-2", BSP, PT, NPT, flange

DN: 1.5 mm-50mm

Pressure: 0- 16 Bar

Medium: Water, oil, wine, beer

Temperature: -20-180 agree

Setting: Flange, thread

Protection: IP65
Connection
Type&
standard
Size
DN


Actuator
(mm)


Inner
Dia.
mm
KV
m 3 /h
Working
Pressure
(MPa)
Control
Pressure
(MPa)
Size(mm)Model No.
KDRAGLTSWLALBSO.D.Normally
Closed
Double
Action
Threaded
Connection
Type
DN1550134.70-1.60.3-0.81266035133G1/2"681526.6////100104200204
DN2050189.50-1.60.3-0.81316035137G3/4"751632////100106200206
DN25502418.10-1.60.3-0.81406035149G1"901739.5////100108200208
DN25632418.10-1.60.3-0.81657743174G1"901739.5////100100200210
DN32633123.10-1.60.3-0.81757743188G1 1/4"1162150////100110200110
DN42633532.90-1.60.3-0.81787743190G1 1/2"1262055.3////100112200212
DN50634552.80-1.00.3-0.81847743203G2"1382270////100116200216
Weld
Conection
Type
DIN11850.2
DN1550134.70-1.60.3-0.81266035140////110301.519302104302204
DN2050189.50-1.60.3-0.81316035136////108301.523302106302206
DN25502418.10-1.60.3-0.81406035150////112321.529302108302208
DN25632418.10-1.60.3-0.81657743175////112321.529302100302200
DN32633123.10-1.60.3-0.81757743193////136321.535302110302210
DN40633532.90-1.60.3-0.81787743193////146401.541302112302212
DN50634552.80-1.00.3-0.81847743206////160401.553302116302216
Weld
Conection
Type
DIN11850.3
DN1550134.70-1.60.3-0.81266035140////11030220303104303204
DN2050189.50-1.60.3-0.81316035136////10830224303106303206
DN25502418.10-1.60.3-0.81406035150////11232230303108303208
DN25632418.10-1.60.3-0.81657743175////11232230303100303200
DN32633123.10-1.60.3-0.81757743193////13640236303110303210
DN40633532.90-1.60.3-0.81787743193////14640242303112303212
DN50634552.80-1.00.3-0.81847743206////16045254303116303216
Weld
Conection
Type
ISO2037
DN1550134.70-1.60.3-0.81266035140////110301.221.3304104304204
DN2050189.50-1.60.3-0.81316035136////108301.225304106304206
DN25502418.10-1.60.3-0.81406035150////112321.233.7304108304208
DN25632418.10-1.60.3-0.81657743175////112321.233.7304100304200
DN32633123.10-1.60.3-0.81757743193////136401.238304110304210
DN40633532.90-1.60.3-0.81787743193////146401.240304112304212
DN50634552.80-1.00.3-0.81847743206////160451.251304116304216

Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Normal Open and Normal Close
Size: 1/8 to 2"
Pressure: 0 to 16bar
Temperature: 0 to 180
Seal: NBR, Viton, Ptfm
Ningbo Hi-Tech Smart Pneumatic Co., Ltd. is specialized in manufacturing all kinds of hydro pneumatic components, aluminum parts and plastic parts. Our main products are including pneumatic cylinder, (air cylinder), solenoid valve, air filter, air regulator, air lubricator, pneumatic fitting, hydraulic fitting, tubes, muffler (silencer) etc.

SMART PNEUMATIC take the lead in passing ISO9001 quality system certification and UKAS system certification in this industry and equip with a complete set equipment (CNC machine, data control lathe, and all kinds of testing machines) and checkout system. Under the joint effort of all our members, SMART PNEUMATIC has already established a strong foundation today.

SMART PNEUMATICS' Sprit is to give you the best quality, the competitive price, the quick delivery, the perfect service. Our goal to customers is "Always Smart Solution for your Automatic System. "

SMART PNEUMATIC believes our profession and efficiency will make your international business easier and quicker.

SMART PNEUMATIC hopes to work together with you, developing in parallel!
