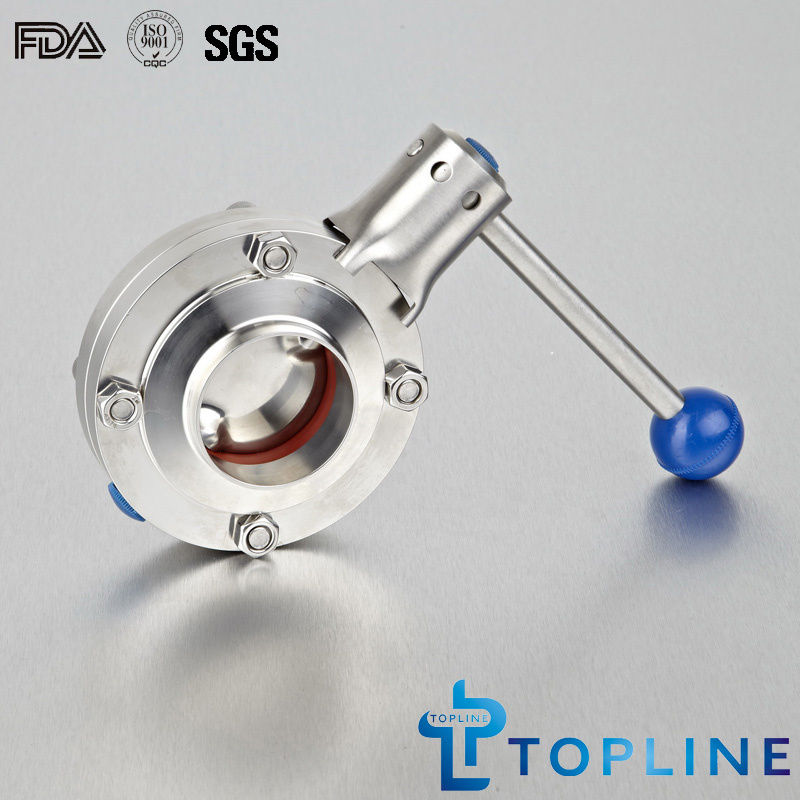

*Sanitary Butterfly Valve
*Material: AISI304, AISI316L
*Standard: DIN/SMS/3A/ISO/IDF/RJT
*Size: DN10-DN200&1/2"-8"
*Three drive forms: Normally closed, normally opened and opened & closed by two air flues separately.
*Application: Used for the control of liquid flow in food, beer, beverage, pharmacy industries.
*

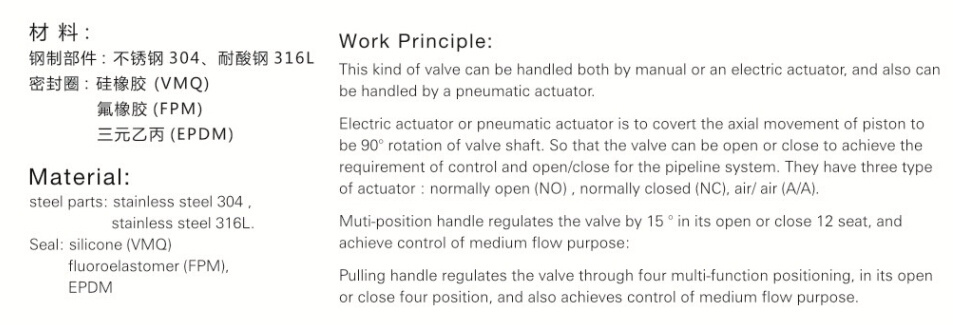

Operating Principle: The butterfly valve can be operated automatically through an actuator or manually with a handle. The handle blocks the valve in the "open" or "closed" position, although there are also other models with intermediate positions. The actuator transforms the axial movement of the piston into a 90º rotary movement which it transmits to the disc.
For more detail information, pls don't hesitate to contact us. We can also produce according to your drawings and specifictions
FAQ:
1. Are you a trader or manufactor?
We are a manufactor
2. Can your products reach to FDA , CE and 3A requirements?
Yes, all of our material can reach to the requirements of FDA, CE and 3A
3. How can you ensure the quality?
We always take the Quality as the most important point during our business. So we have a formal regulation to control the quality, the procedure will be: A. The raw materials will be 100% inspected. we will ruturn to the supplier for any of poor raw materials. B. during production, different materials will be charged by different person to avoid any mixing. C. After production, we always inspect 50% for each lot. If there is any problem in the 50%, then we will go back to inspect 100%. of course, if our customer have the special requirement to inspect 100%. We can do that as well.
4. Can you supply the 3.1 Quality Certificate (including the chemical composition analysis resuls)?
Yes, we inspect chemical composition for every lot of our material , and supply the record to issue the 3.1 Quality Certificate. If necessary, we can send the 3.1 Quality Certificate together with the shipping documents.
5. How do you solve the quality Complaint, if any?
We are prety proud that we never let any customer leave us bcz the quality. We'll do our best to supply the correct products, so we receive little quality complaint during our 15 years business. If it is happend, we'll be responsible for it from the begining to the end.
6. How long would be the delivery time?
Regarding the common products, 8-10 days will be enough; for bulk order, 15-25days is required. It depends the order quantity
7. Any further questions, pls feel free to let me know

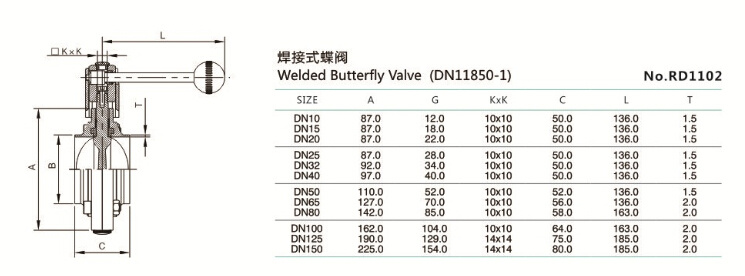

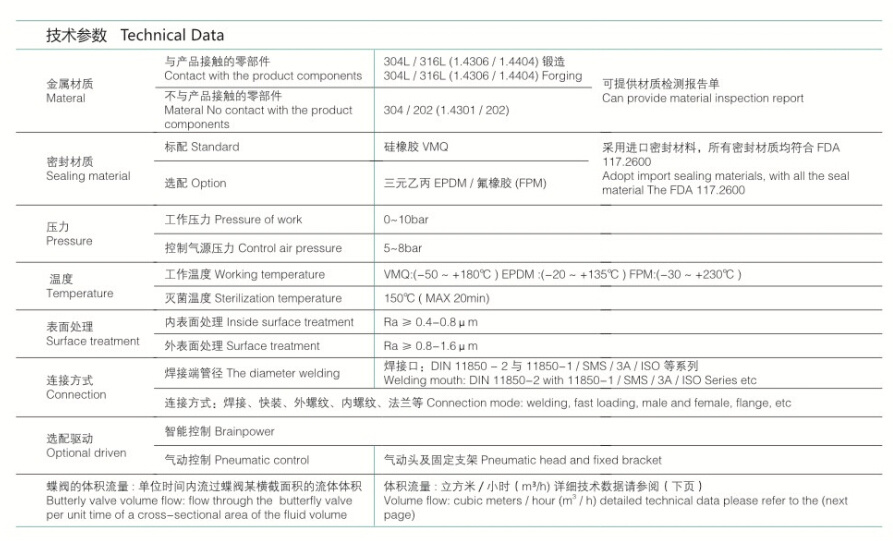

| Connecting Ends | Welded |
| Standard | DIN, SMS, 3A, ISO, IDF, RJT, BS |
| Available Sizes | DN10-DN150, 1/2"-8" |
| Metal Material | Parts in contact with fluid | 304, 316L (DIN 1.4301, 1.4304) Forging |
| Other parts | 304 |
| Seal Material | Options | Silicone, EPDM, FPM, NBR |
| Operation | Manual | Pulling handle, Multiposition |
| Pneumatic | NC, NO, A/A |
| Electric |
|
| Pressure | Max. working pressure | 10 bar |
| Air supply pressure | 5~8 bar |
| Surface Finish | Internal surface | Ra < 0.8 μm |
| External surface | Ra <1.6 μm |
As a manufacturer, TopLine Company specialize in the supply of the following sanitary flow control components:
Stainless Steel Sanitary valves ( butterfly, check, ball, CPM, diaphragm, sampling, seat valves, ect)
Stainless Steel Sanitary fittings ( elbow, tee, clamp, pipe holder, ferrule, union, manway, cleaning ball, sight glass, filter, etc)
Stainless Steel Sanitary pump ( centrifugal, rotary lobe, CIP)
Stainless Steel Pipe Series( stainless steel Sanitary Welding pipe, Seamless pipe)
Topline services for food, beverage, dairy, chemical, bioth, pharmaceutical, etc...
We believes in "What we say, what we do", honesty is the only way leading to long term business relationship. We always trying our best for customers and put ourselves into customers' shoes. Making business with customers, making friends with them.
Topline has been in this business since 2009. The boss has worked for sanitary valve industry since 2000. After so many years, we are becoming more and more professional in this field. We know more about customers' requirement and offer best services.
