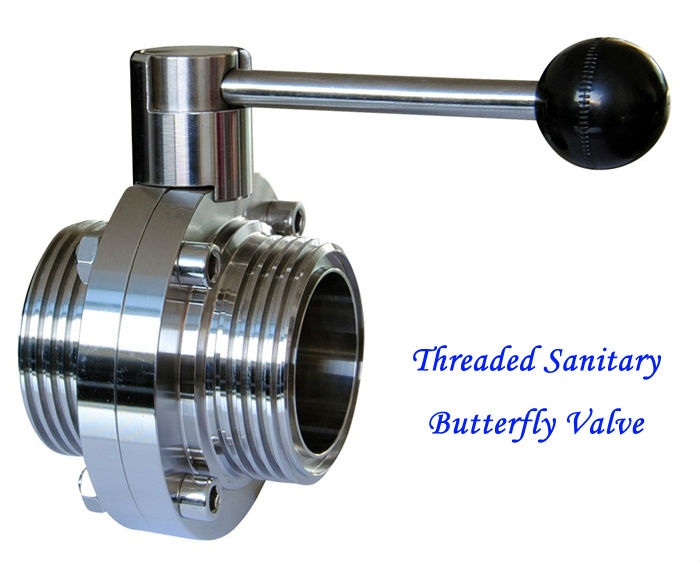

Welded Stainless Steel Sanitary Butterfly Valve, Wafer Type Sanitary Butterfly Valve

Welded Stainless Steel Sanitary Butterfly Valve, Wafer Type Sanitary Butterfly Valve
Price: Negotiable/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Welded  stainless steel sanitary butterfly valve, wafer type sanitary butterfly valve
1)Standard: DIN, SMS, 3A,ISO/IDF
2)Body Material: AISI 304, AISI 316L
3)Standard: DIN, SMS, 3A,ISO/IDF
4)Connection: Clamped End,Butt Welded End,Threaded End
5)Diameter Size: DN25-DN150 , 1"-6"
6)Body Material: AISI 304, AISI 316L
7)Options: Manual ,Pneumatic ,Electric Operation
8)OEM is acceptable
9)Applicable Field: Milk ,Beer ,Drinks Machinery ,Food Processing ,Medicine Machinery , Water Treatment ,Chemical Industry ,Pharmacy ,Biotechnology ect.

*Product advantages:
1) Small in size and light in weight and maintenance, it can be mounted wherever needed.
2) Simple, compact structure, quick 90 degree on-off operation.
3) Disc has two-way bearing, perfect seal, without leakage under the pressure test
4) Flow curve tending to straight-line, excellent regulation performance.
5) Various kinds of materials, applicablbe to different medium.
6) Strong wash and brish resistance and can fit to bad working condition
7) Center plate structure, small torque of open and close.
8)Long service life, standing the test of ten thousands opening and closing operation.
9) Can be used in cutting off and regulation medium.

Standard Test:
Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.

Seat Test: 1.1 times the working pressure with water.

Function / Operation Test: At the time of final inspection, each valve and its
actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.

Special Test: On request, any other test can be carried out according to special instruction by client.

We uphold the concept of sustainable service and constantly striving for conviction. With the help of unique mechanical design concept and valuable business experiences, we have manufactured the most competitive various valves.
We sincerely wish work together and share great prosperity with you!
Prod Model: S-01
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Port Size: Dn25-Dn150 , 1"-6"
Body Material: AISI 304, AISI 316L
Medium: Milk ,Beer ,Drinks Machinery ,Food Processing
Connection Form: Welding
Structure: Centre Sealing
Seal Form: Force Sealed
Work Pressure: Low Pressure (',Pn<1.6mpa)
Working Temperature: Normal Temperature (',-40??C
Material Of Seal Surface: Soft Sealed
Application: Water Industrial Usage
Valve Body: Stainless Steel
Bundor Valve Science & Technology (Shanghai) Co., Ltd specialized in wafer butterfly valve, worm butterfly valve, lug butterfly valve, flange butterfly valve, electric butterfly valve, pneumatic butterfly valve, dual plate check valve and soft seal gate valve, DN40-1200, 0.6/1.0/1.6MPa.

We can supply different body materials such as cast iron, ductile iron, cast steel, stainless steel and bronze according to different working conditions.

The company possesses complete advanced in spection to control the whole quality process from casting, forging, spare parts to finished products, including spectrum analyzer, hardness tester, chemical analyzer, ultrasonic thickness gage, monitoring system equipment, strictly produce according to ISO\API\JIS\DIN standard.

Our butterfly valve is unique and novel, zero leakage and small torque. Mainly used in water supply, sewage treatment, chemical industry, steel plant and mining industry, well sold in more than 42 countries such as southeast of Asia, South America and the Middle East etc.
