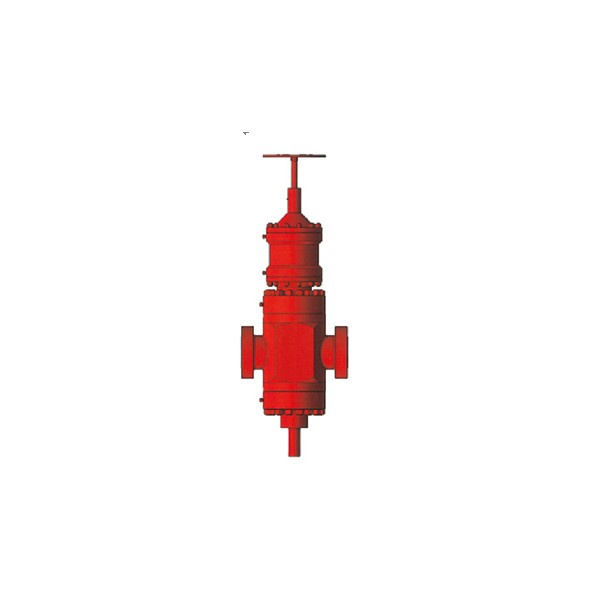

2,000 thru 15,000 psi, 1-13/16" to 7-1/16"
The valve is available with an optional manual closing and locking screw.
The adjusting nut in the bind cylinder head absorbs the overload or testing pressure applied to the
opening side of the valve, protecting the stem from overload.
The cylinder ports are located a sufficient distance from the cylinder head to allow in the piston cover
the exhaust port before the end of the stroke. This arrangement provides enough damping to protect the cylinder from shock loading.
The overload or testing pressure applied to the closing side of the cylinder is absorbed when the piston bottoms out against the packing gland of the stem.
The tail rod and the operating stem have back seating shoulders which allow replacement of the stern packing while the valve is under pressure.
Shanghai W-Flow Control is a professional valve company with nearly thirty years of service and technical background experiences in the valve industry.
W-flow Control offers a wide ranges of ball valves, including API-6D Gate valves, Globe valves, Check valves, API-6A Wellhead Valve and Chritsmas Tree Equipment...., etc.
W-flow Control produce products according to international standard, ISO9001, ANSI, API Fire-Safe Approval, CRN Registered and PED 97/23/EC Module H certificate, 3A, TUV/TRD 100, DNV, BV MARINE Certificate, ATEX, TA-Luft, ISO 15848, REACH, RoHS, API 6A, ...etc.
