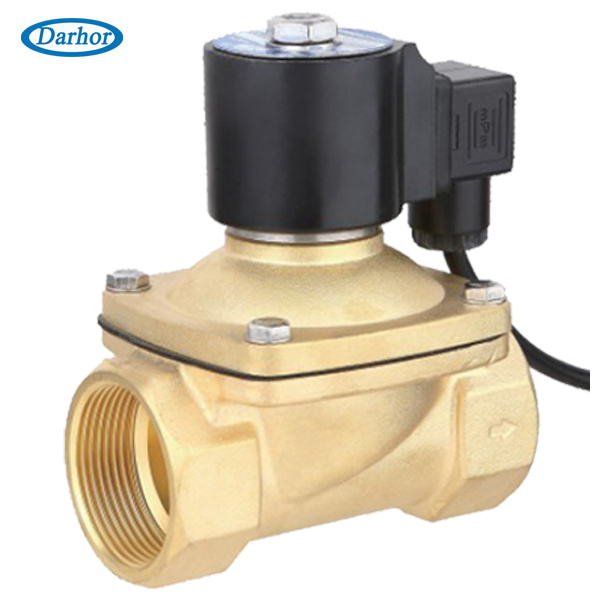

Fountain with solenoid valve DHDF
Characteristic:
1. With diaphragm construction for fountain use matched with watertight coil
2. Opening speed at 10 times per second
Medium: Water
Temperature:
NBR Seal: 14F to 176F, -10 to 80
EPDM Seal: 14F to 250F, -10 to 120
VITON Seal: 14F to 300F, -10 to 150
Pressure: DHDF1: 0.3 ~ 5 bar
Port Size: 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", F2 1/2", F3", F4"
Port Thread: BSPP, BSPT, NPT, Flange
Orifice (mm): 15, 20, 25, 32, 40, 50, 65, 80, 100, 125, 150
Voltage:
DC - 12V, 24V
AC - 24V, 120V, 240V/60Hz 110V, 220V/50Hz
Tolerance: +/- 10%
Coils: F14B, 26VA (AC), 13W (DC), IP68 100%ED
Material:
Body - Brass or cast iron
Seal -NBR, EPDM, PTFE or VITON
Armature Tube - Stainless Steel 304
Plunger - Stainless Steel 430F
Stop -SS430F
Springs - SS 304
Shading Rings - Stainless Steel 304
|
Port Size |
Orifice |
Cv |
Min Pressure(bar) |
Max Pressure(bar) |
Valve Body |
Coil |
|
AC(22VA) |
DC(15W) |
|
1/2" |
15 |
4.5 |
0 |
5 |
5 |
DHDF115X X X |
F14B |
|
3/4" |
20 |
9.3 |
0 |
5 |
5 |
DHDF120X X X |
F14B |
|
1" |
25 |
12 |
0 |
5 |
5 |
DHDF125X X X |
F14B |
|
1 1/4" |
32 |
22 |
0 |
5 |
5 |
DHDF132X X X |
F14B |
|
1 1/2"" |
40 |
30 |
0 |
5 |
5 |
DHDF140X X X |
F14B |
|
2" |
50 |
48 |
0 |
5 |
5 |
DHDF150X X X |
F14B |
|
F2 1/2" |
65 |
68 |
0 |
5 |
5 |
DHDF150X X X |
F14B |
|
F3" |
80 |
100 |
0 |
5 |
5 |
DHDF150X X X |
F14B |
|
F4" |
100 |
175 |
0 |
5 |
5 |
DHDF150X X X |
F14B |
