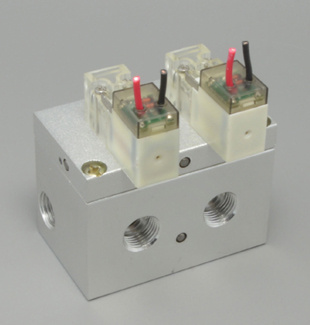

Wire Leads Series Oxygen Concentrators Special Solenoid Valve

Wire Leads Series Oxygen Concentrators Special Solenoid Valve
Price: US $ 10/Piece
Trade Terms: FOB,CIF
Min Order: 100/Piece
Pay Type: T/T,Western Union
Description: HB10-wire leads Series Oxygen Concentrators Special Solenoid Valve

Benefits of Oxygen Valve after using the 10mm miniature pilot valves:
1. The volume is smaller 2. Noise reducing(we will launch the mute solenoid valve) 3. Power reduction(power 0.7-0.8w) 4. Reduce the distortion rate(Reduce the defective rate for a long downtime starts)
5. Improving the service life(This 10mm valve service life>100 million times)
6. Other integrated can greatly improve:
A. Effect of temperature on valves
B. Medium corrosivity on effects of valve body and rubber
C. Solenoid valve and valve body together tightly, no structural loose
D. Material are used in various parts of the electromagnetic valve at
Medical safety level
E. Production process to achieve the requirement of environmental
Protection

Valve Body: HB10series valve body use United States of high molecular weight polyester material with memory performance, very good physical and chemical properties, medical-grade materials, high and low temperature resistance, processing the body core parts are made of injection molding machines, molds Germany import, ensure the stability of the product.

Coil: Germany import enameled wire, resistant to temperature of 260 degrees Adopt imported high precision winding machine for winding, ensuring consistency of winding. Plastic coating materials for Japan's high strength resin, with high dimensional stability, resistance to high temperature.

Product structure: This valve adopts non-casing structure, the skeleton material resistance to high temperature, high strength, low coefficient of friction, rubbing, superior physical and chemical properties

Seals: Valve main seals using Japan imported deformation resistant fluorine rubber, the whole valve has a wide temperature performance. Other plastic parts inside the valve are made of Japan imported molds, Germany, and Italy imported injection machine manufacturing, to ensure the quality of parts


Dynamic&static core: Static and dynamic core processing using Japan import automatic machine tools, Machining accuracy up to 0.005mm


Springs: Valve springs are used within Japan imported stainless Spring wire material, import automatic spring machine, ensuring consistency of spring endurance.

Assembly and testing: Full inspection in valve hard core, used a semiautomatic Assembly, with the special fixture, and guarantee consistent. Assembly, Once assembled pass rate more than 95%. All valves automatically testd for leakage

Valve design, appearnce, materials manufactured by the company's research and development team in 28 months research and development. Company has the 12 patents in products, while a dozen patent in applications.

Through a wide range of materials, processes and equipment warranties, HB10 mini solenoid valve service life can reach more than 100 million times, widely used in textile, medical, electronics, light industry, machinery, and other industries

Order Code&Symbol:







Dimension(mm):
Common specification:      Solenoid Coil Specification:
Item No. HB-10   Wire leads Vertical type(L type)/Horizontal type(M type)
Type 3/2 Normally Open(Often closed)   Standard Voltage DC24V/12V
Using Fluid Air,Inertgases   Allows Voltage Fluctuation ±10%
3/2 Normally open (Often closed) -10degree - +75degree   Power 1W/1.2W/Double power
Working pressure  0-7bar   Insulation class H
Valve orifice size  Φ0.7mm,Φ1.0mm,Φ1.2mm   Service life  >50million times
P->A cv:0.008   Insturction light LED
b:0.11   Operating frequency >30HZ
A->R cv:0.015   Response time 6-8ms
b:0.35   Protective structures Dust-proof
oil no need

Prod Model: HB10-L
Type: Pilot Operated
Ningbo Hengbo Electromagnetic Technology Co., Ltd., founded in 2011, is located in ningbo yinzhou district, the registered capital of 5 million yuan, existing staff 80 people, is a focus is committed to research and development, production of high precision 10 mm, 15 mm series miniature low power pilot valve and pneumatic components manufacturing enterprises. Company since its inception, always adhere to the "people-oriented, sincerity" business principles, adhering to the "science and technology innovation, endless" business philosophy, in market competition and crisis consciousness, gathers together the industry elite, the foreign advanced technology, management method and business experience and the reality of domestic enterprises, created a set of complete enterprise management system. The company's products with reliable quality and good after-sales service won the trust of customers at home and abroad, the products are exported to all over the world.

The company has the first-class research and development team, senior management personnel and senior engineer 15 people, intermediate engineers and technical personnel 20 people. 36 sets of various equipment, including imported equipment more than 20 units, in the process of production constantly updated production equipment and production process improvement, and successively imported fromGermany, Italy, Japan and other advanced research and development production equipment set up the independent research and development laboratory, using the most advanced reasonable in testing equipment, make product quality obtained the powerful guarantee. With sophisticated equipment and advanced technology, make high quality products, will be better, more reliable and more affordable products presented to the broad masses of users.

We are leading steps along the "management modernization, product diversification, digital technology, the internationalization of enterprises" development direction, by the innovation of science and technology, superego, take a research and development, manufacture of high-end basis of pneumatic components the road to the future development of the enterprise, and gradually to heng bo built a foothold in ningbo, radiation throughout the country, towards the world modernization, internationalization of the company.
