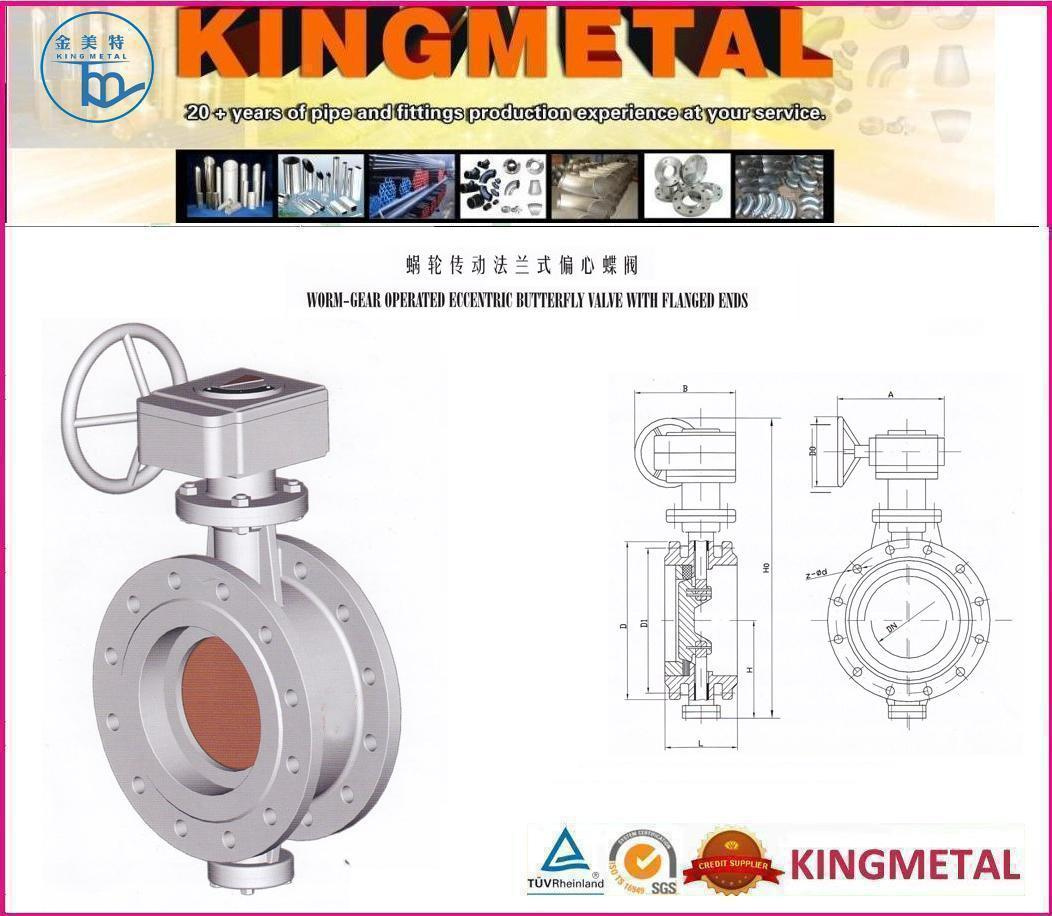

Worm-Gear Operated Eccentric Butterfly Valve
| Price: |
US $ 200/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
Butterfly Valve
Butterfly valve may include a pressure-tight resilient seat and an angularly offset disc. Butterfly valve designs use a hard seat and an O-ring or piston ring around the disk to seal. Butterfly valve range in size from small to enormous, and are well suited for large flows of gases, liquids, or slurries, offer a number of advantages when used for the proper application. They may be used in a wide variety of chemical services, they are available with small dimensions allowing for use in areas where space is limited, and they allow a high coefficient of flow. Conversely, the design of butterfly valve creates the disadvantage of not being easy to clean, and therefore should be avoided in situations that call for sterile, medical or food processing applications. Additionally, some styles may have difficulty dispensing slurries.
| Size | | Flow in GPM @ 1 PSI | P@Various Disc Angles. | | | | Full 90° Open | |
| 10° | 20° | 30° | 40° | 50° | 60° | 70° | 80° |
| 2" | 0.1 | | 5 | 12 | | 24 | 45 | | 64 | 90 | 125 | 135 | |
| 2 1/2" | 0.2 | | 8 | 20 | | 37 | 65 | | 98 | 144 | 204 | 220 | |
| 3" | 0.3 | | 12 | 22 | | 39 | 70 | | 116 | 183 | 275 | 302 | |
| 4" | 0.5 | | 17 | 36 | | 78 | 139 | | 230 | 364 | 546 | 600 | |
| 5" | 0.8 | | 29 | 61 | | 133 | 237 | | 392 | 620 | 930 | 1,022 | |
| 6" | 2 | | 45 | 95 | | 205 | 366 | | 605 | 958 | 1,437 | 1,579 | |
| 8" | 3 | | 89 | 188 | | 408 | 727 | | 1,202 | 1,903 | 2,854 | 3,136 | |
| 10" | 4 | | 151 | 320 | | 694 | 1,237 | | 2,047 | 3,240 | 4,859 | 5,340 | |
| 12" | 5 | | 234 | 495 | | 1,072 | 1,911 | | 3,162 | 5,005 | 7,507 | 8,250 | |
| 14" | 6 | | 338 | 715 | | 1,549 | 2,761 | | 4,568 | 7,230 | 10,844 | 11,917 | |
| 16" | 8 | | 464 | 983 | | 2,130 | 3,797 | | 6,282 | 9,942 | 14,913 | 16,388 | |
| 18" | 11 | | 615 | 1,302 | | 2,822 | 5,028 | | 8,320 | 13,168 | 19,752 | 21,705 | |
| 20" | 14 | | 791 | 1,674 | | 3,628 | 6,465 | | 10,698 | 16,931 | 25,396 | 27,903 | |
| 24" | 22 | | 1,222 | 2,587 | | 5,605 | 9,989 | | 16,528 | 26,157 | 39,236 | 43,116 | |
| 28" | 36 | | 1,813 | 3,639 | | 6,636 | 11,061 | | 18,673 | 29,732 | 44,343 | 49,500 | |
| 32" | 45 | | 2,387 | 4,791 | | 8,736 | 13,788 | | 20,613 | 31,395 | 48,117 | 68,250 | |
| 36" | 60 | | 3,021 | 6,063 | | 11,055 | 17,449 | | 26,086 | 39,731 | 60,895 | 86,375 | |
| 40" | 84 | | 4,183 | 8,395 | | 15,307 | 24,159 | | 36,166 | 55,084 | 84,425 | 119,750 | |
Notes
Manufacturer reserves the right to modify dimensions, materials, or design. Contact factory for certification
| Prod Model: |
KM-06V5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2"~48" |
| Connection Form: |
Flange |
| Work Pressure: |
Low Pressure (',Pn<1.6mpa) |
| Structure: |
Three-Eccentric Sealing |
| Seal Form: |
Force Sealed |
| Working Temperature: |
Normal Temperature (',-40??C
|
| Application: |
Water Industrial Usage |
| Material Of Seal Surface: |
Metal Hard Sealed |
| Driving Mode: |
Manual or Electric |
