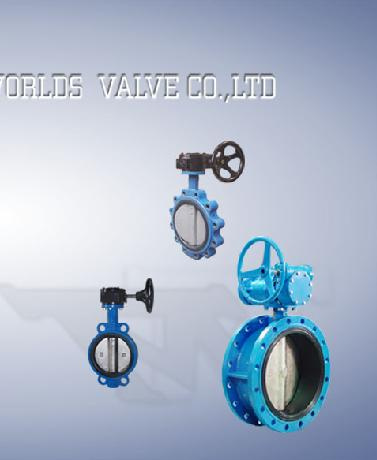

Wrench butterfly valves
Size: DN40-DN1200/1.5"-48"
End flange: ANSI B 16.1, ASTM B 16.47, EN 1092, AS 2129
Face to face: ANSI B 16.10
Standard
API609/EN593/BS5155
Top flange: ISO 5211
Nominal pressure: DN40-DN600(1.5"-24") PN1.0/1.6MPa(150/200PSI) DN700-DN1200(28"-48") PN1.0MPa(150PSI)
Body: Cast Iron/Ductile Iron/WCB/Carbon steel/AL-Bronze/CF8, SS304/CF8M, SS316
Disc: Ductile Iron/Ni-plated ductile iron/Nylon-plated ductile iron/AL-Bronze/Rubberlined Disc/1.2501/1.4529/CF8/CF8M/Hastelloy Alloy/Monel
Stem: SS416/SS304/SS316/SS431/17-4pH/Monel
Seat: NBR/Hypalon/EPDM/Neoprene/NR/Wear-Resistant EPDM/Viton/Silicon/Heat-Resistant EPDM/White EPDM/EPDM/PTFE
Suitable temperature: Normal Temperature -45~150
Medium: Fresh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc.
Operated way Handwheel; Worm gear, pneumatic or electric actuator,
TIANJIN WORLDS VALVE Ltd. is located at TIAN JIN BIN HAI, , it is only 3 kilometers away from Tianjin Xingang Port, TIANJIN WORLDS VALVE Ltd. focuses on producing, installing, sale and service. The main products ranges from Center Line Butterfly Valve, Flanged Butterfly Valve, Metal Butterfly Valve, Dual Plate Check Valve, Gate Valve, Waterpower Control Valve, Microresistance Slow Close Check Valve, Multi-function Pump Control Valve to their series products. Moreover, we can produce control valve and pressure reducing valve with different materials, pressures, specifications, actuation ways. Our products have more than 50 serials and 1200 species, the annual production output is more than 8.000 metric tons. WORLDS valves sells well all over China and have been exported to Europe, America and other countries and areas, they are widely used in water supply and drainage, electric power, petrol chemical industry, metallurgy and other trades. The products are creative with good quality, cheap price and excellent credit, so far we got a good feedback from our customers.
WORLDS has excellent technicians and engineers, at the same time it has a lot of large and middle machines including 178 sets of manufacturing equipments and 32 sets of performance testing equipments imported from overseas. Our products have original design, exquisite technique, perfect manufacture and complete testing ways. It has passed ISO 9001 international quality system certification of DNV. WORLDS will supply best products and service for all customers.
