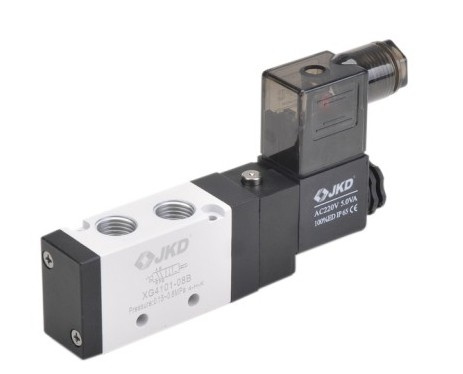

XG Series Spacer Sleeve Solenoid Valve
FEATURE
1.Pilot-oriented mode: optional for internal or external
2.Structure in sliding column mode: good tightness and sensitive reaction
3.Three position solenoid valves have three kinds of central function for your choice
4.Double control solenoid valves have memory function
5.Internal hole adopts special processing technology which has little attrition friction,
low start pressure and long service life
6.No need to add oil for lubrication
7.It is available to form integrated valve group with the base to save installation space
8.Affiliated manual devices are equipped to facilitate installation and debugging
9.Several standard voltage grades are optional
|
SPECIFICATION |
|
Model |
XG4101-06B/08B XG4101A-06B/08B |
XG4200-06B/08B XG4200A-06B/08B |
XG4303C-06B/08B XG4303AC-06B/08B |
XG4303E-06B/08B XG4303AE-06B/08B |
XG4303P-06B/08B XG4303AP-06B/08B |
|
Valve type |
Two way five position |
Three way five position |
|
Effective cross section area |
14MM²(Cv=0.78) |
12MM²(Cv=0.67) |
|
Working medium |
Air(to be filtered by 40μ filter element) |
|
Motion pattern |
Inner guide type |
|
Working pressure |
0.15~0.8mpa |
|
Max. test pressure |
1.2MPA |
|
Working pressure |
"5~50°C |
|
Operating voltage Tolerance |
±10% |
|
Power consumption |
AC:4.5VA DC:3W |
|
Protection |
IP65 |
|
Wiring / Connector |
G or L |
|
Max frequency |
5 cycle/sec |
|
Response time |
0.05 sec |
