XP Series Pilot Stainless Steel Solenoid Valve
| Price: |
US $ 14.4/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
20/Piece |
| Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |
FEATURES1. Compact volume, large flow, widely use
2. Pilot operated structure
3. Lower power consumption, bigger working pressure
4. Body material: brass, stainless steel
5. NBR, VITON, EPDM, SILICONE seals are available
6. Normally closed and normally open.SPECIFICATIONS Specification for XP Series Normally Closed Solenoid Valve| Model | Thread Size (G) | Orifice (mm) | CV Value | Working Pressure (Bar) | Seals | Voltage |
| AC | DC |
| Brass body | Stainless steel | air, gas | water | ≤20cst oil | air, gas | water | ≤20cst oil |
| XP130-10 | XP130-10B | 3/8" | 13 | 4.5 | 0.5-16 | 0.5-16 | 0.5-13 | 0.5-16 | 0.5-16 | 0.5-13 | NBR seals ≤80ºC; Viton seals ≤150ºC; EPDM seals ≤120ºC Silicone seals ≤100ºC | 220VAC 110VAC 24VDC 12VDC make Other voltage as requested |
| XP130-15 | XP130-15B | 1/2" | 13 | 4.5 | 0.5-16 | 0.5-16 | 0.5-13 | 0.5-16 | 0.5-16 | 0.5-13 |
| XP200-20 | XP200-20B | 3/4" | 20 | 7.6 | 0.5-16 | 0.5-16 | 0.5-13 | 0.5-16 | 0.5-16 | 0.5-13 |
| XP250-25 | XP250-25B | 1" | 25 | 12 | 0.5-16 | 0.5-16 | 0.5-13 | 0.5-16 | 0.5-16 | 0.5-13 |
| XP320-35 | XP320-35B | 1 1/4" | 32 | 22 | 0.5-16 | 0.5-16 | 0.5-13 | 0.5-16 | 0.5-16 | 0.5-13 |
| XP400-40 | XP400-40B | 1 1/2" | 40 | 30 | 0.5-16 | 0.5-16 | 0.5-13 | 0.5-16 | 0.5-16 | 0.5-13 |
| XP500-50 | XP500-50B | 2" | 50 | 48 | 0.5-16 | 0.5-16 | 0.5-13 | 0.5-16 | 0.5-16 | 0.5-13 |
| Flange connection | XP250-25FB | 4 holes flange | 25 | 12 | 0.5-16 | 0.5-16 | 0.5-13 | 0.5-16 | 0.5-16 | 0.5-13 |
| XP320-35FB | 32 | 22 | 0.5-16 | 0.5-16 | 0.5-13 | 0.5-16 | 0.5-16 | 0.5-13 |
| XP400-40FB | 40 | 30 | 0.5-16 | 0.5-16 | 0.5-13 | 0.5-16 | 0.5-16 | 0.5-13 |
| XP500-50FB | 50 | 48 | 0.5-16 | 0.5-16 | 0.5-13 | 0.5-16 | 0.5-16 | 0.5-13 |
Specification for XP Series Normally Open Solenoid Valve | Model | Thread Size (G) | Orifice (mm) | CV Value | Working Pressure (Bar) | Seals | Voltage |
| AC | DC |
| Brass body | Stainless steel | air, gas | water | ≤20cst oil | air, gas | water | ≤20cst oil |
| XP130-10H | XP130-10BH | 3/8" | 13 | 4.5 | 0.5-8 | 0.5-8 | 0.5-7 | 0.5-8 | 0.5-8 | 0.5-7 | NBR seals ≤80ºC Viton seals ≤150ºC EPDM seals ≤120ºC Silicone seals ≤100ºC | 220VAC 110VAC 24VDC 12VDC make
Other voltage as requested |
| XP130-15H | XP130-15BH | 1/2" | 13 | 4.5 | 0.5-8 | 0.5-8 | 0.5-7 | 0.5-8 | 0.5-8 | 0.5-7 |
| XP200-20H | XP200-20BH | 3/4" | 20 | 7.6 | 0.5-8 | 0.5-8 | 0.5-7 | 0.5-8 | 0.5-8 | 0.5-7 |
| XP250-25H | XP250-25BH | 1" | 25 | 12 | 0.5-8 | 0.5-8 | 0.5-7 | 0.5-8 | 0.5-8 | 0.5-7 |
| XP320-35H | XP320-35BH | 1 1/4" | 32 | 22 | 0.5-8 | 0.5-8 | 0.5-7 | 0.5-8 | 0.5-8 | 0.5-7 |
| XP400-40H | XP400-40BH | 1 1/2" | 40 | 30 | 0.5-8 | 0.5-8 | 0.5-7 | 0.5-8 | 0.5-8 | 0.5-7 |
| XP500-50H | XP500-50BH | 2" | 50 | 48 | 0.5-8 | 0.5-8 | 0.5-7 | 0.5-8 | 0.5-8 | 0.5-7 |
| Flange connection | XP250-25FBH | 4 holes flange | 25 | 12 | 0.5-8 | 0.5-8 | 0.5-7 | 0.5-8 | 0.5-8 | 0.5-7 |
| XP320-35FBH | 32 | 22 | 0.5-8 | 0.5-8 | 0.5-7 | 0.5-8 | 0.5-8 | 0.5-7 |
| XP400-40FBH | 40 | 30 | 0.5-8 | 0.5-8 | 0.5-7 | 0.5-8 | 0.5-8 | 0.5-7 |
| XP500-50FBH | 50 | 48 | 0.5-8 | 0.5-8 | 0.5-7 | 0.5-8 | 0.5-8 | 0.5-7 |
ADVANTAGE 1) Raw Material conforms to China industry standard, bought from famous factory.
2) Insulation grade: H class, good resistance to high temperature;
3) Machined by CNC to make sure the tolerance as the drawing
4) 100% leakage testing under low pressure and high pressure.
5) All kinds of valve and seals material to meet custom requirement.
6) 1 year quality assurance after shipment.

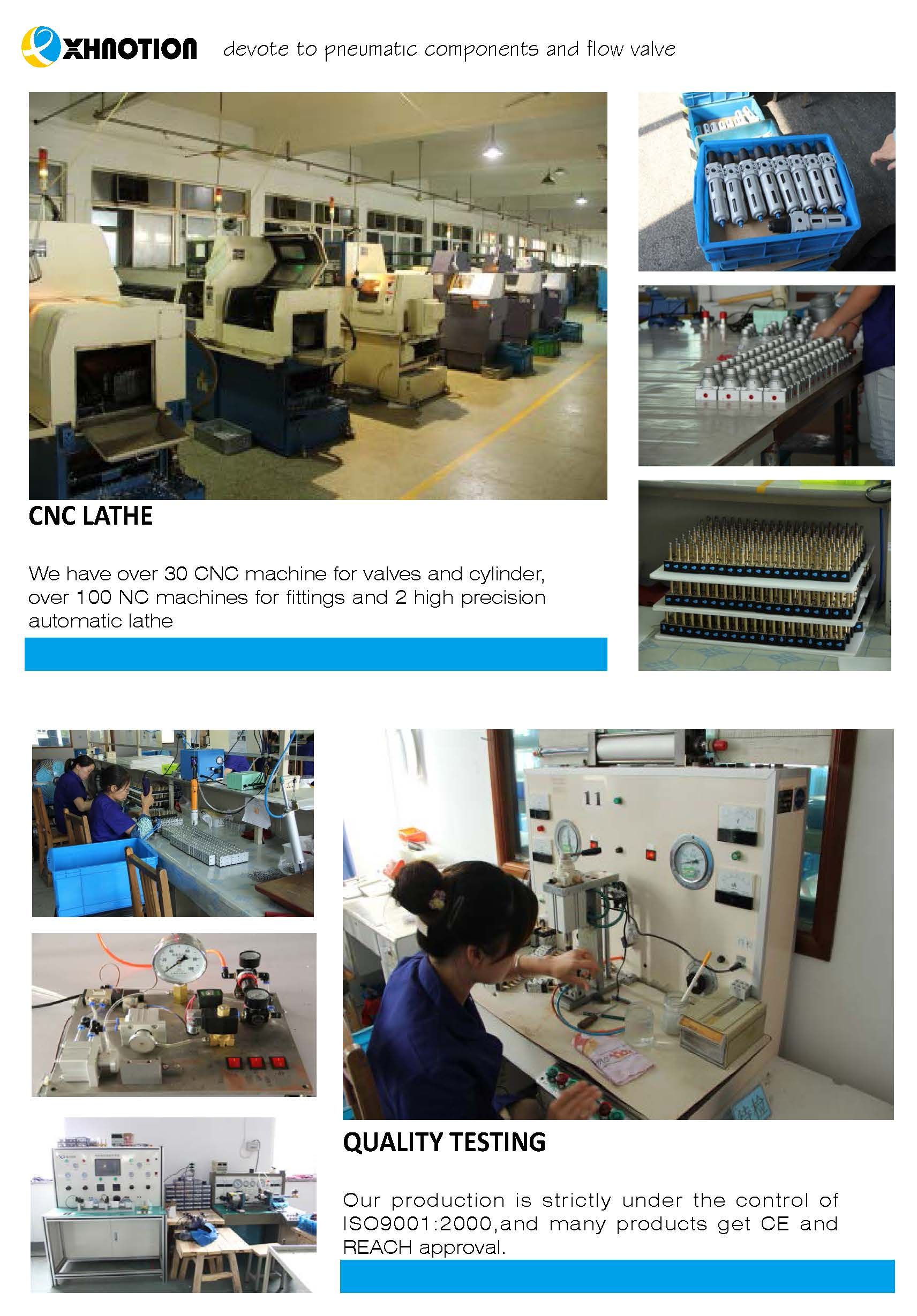

7) After sales technique support WORKSHOP SHOW
WHY CHOOSE US? 1) We offer one stop solution. Over 5000 items for you to save efforts and costs.
2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.
3) We will reply you within 24 hours.
4) Whatever quantity you are requesting, we always offer you the best quality.
5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder
FAQ Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available
Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.
Payment Terms
We accept T/T, L/C, Paypal, western union,etc.
Samples Policy
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.
Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
============================================================
We have thousands of solenoid valve in the stock. If you do not know how to order our valve, please tell us some necessary information, we will recommend you the most economical solenoid valve.
1. valve material
2. working pressure
3. temperature range
4 working environment
5. quantity
You can choose as below
Body Material: Plastic, brass, SS304, SS306, Steel.
Seal Material: NBR, VITON, PTFE, EPDM, SILICONE
Voltage: 12VDC, 24VDC, 24VAC, 220VAC, 280VAC
Size: M5-2", Flange connection
| Prod Model: |
XP250-25B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Regular Voltage: |
12VDC, 24VDC, 110VAC, 220VAC |
| Fluid: |
Air, Water, Oil, Diesel, Ozone, Steam |
| Connection Form: |
Thread |
| Type: |
Pilot Operated |
| Valve Structure: |
Direct-Acting Piston Structure |
| Power Supply: |
DC Solenoid Valve |
| Application: |
Water Industrial Usage |
XHnotion, is a leading manufacturer of pneumatic components and flow valve in China. Our products include below items
Pneumatic fittings, plastic, brass, stainless steel push in fittings
Pneumatic quick coupling, air tool kits, air blow gun
Pneumatic muffler, silencer, filter
Air hose- PU tubes, nylon tube, PE tube, PTFE tubes, etc
Solenoid control valve for water, air, diesel, oil
Air cylinder, air preparation, pneumatic directional valve
Modular hose, water push in fitting
Ball valve, brass connector
WHY CHOOSE US?
1) We offer one stop solution. Over 5000 items for you to save efforts and costs.
2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.
3) We will reply you within 24 hours.
4) Whatever quantity you are requesting, we always offer you the best quality.
5)3D drawing, CAD drawing service for custom fittings, hose, valve, cylinder

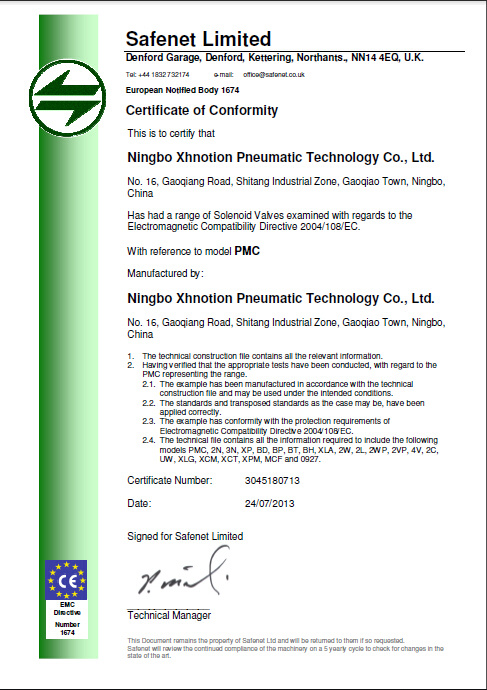

Our production is strictly under the control of ISO9001: 2000, and many products get CE approval. Since founded in 1997, we have marketed over 70 countries and firmly established our reputation for the excellence of our design, quality, service and pricing.
