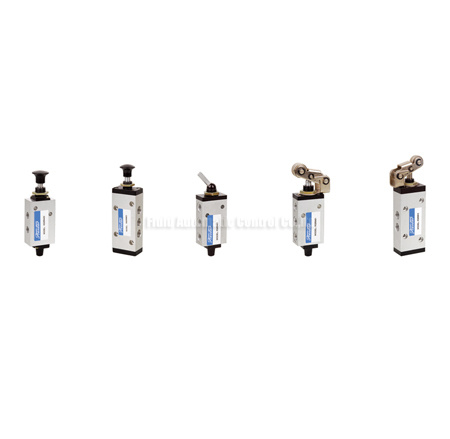

*XQ series mechanical valve and Manual Operated valve
*Aluminum alloy valve body
*Two position Three way and Two position Five way
*Port size G1/8”,G1/4”
*Various actuator model for slection
*Compact design,Flexible application
*Stable with long service life
ORDERING CODE |
| XQ | 25 | 06 | 20 |
| Type | Code For Function Type | Port Size | Actuator Type |
| XQ:XQ Series Mechanical and Manual Operated Valve | 25:Two Position Five Way | 02:M5(2mm) | 10:Ejector Rod Type Mechanical control |
| 11:Ejector Rod Roller Type Mechanical Control |
| 12:Lever Roller Type Mechanical Control |
| 04:G1/8"(4mm) | 13:One Way Lever Roller Type Mechanical Control |
| 23:Two Position Three Way | 20:Button Type |
| 20.1: Stop Type |
| 06:G1/4"(6mm) | 21:Toggle type Manual Operated |
| 22:Hand Pull Type Manual Operated |
| SPECIFICATION |
| Model no | XQ Series |
| Working Medium | Compressed 40 Micron Filtered Air |
| Body Material | Aluminum Alloy |
| Position And Way Numbers | Two Position-Three Way And Two Position Five Way |
| Port Size | G1/8" And G1/4" |
| Working Pressure | 0~0.8MPa |
| Pressure Endurance | 1.2MPa |
| Operating Temperature | 0~70ºC |
