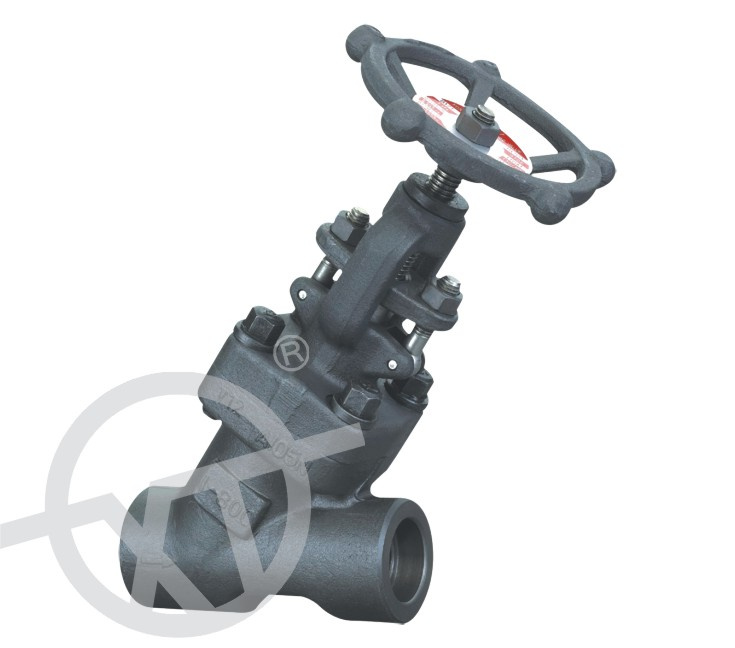

Specifications:
1. Y pattern body design
2. BB - Bolted bonnet
3. OS&Y - outside screw and yoke
4. Y Pattern design eases changes in directional flow and reduces vibration
5. Socket weld ends: ASME B 16.11
Threaded ends: ANSI/ASME B 1.20.1
Butt-welded ends: ANSI B16.25
6. Forged Steel Globe Valves conform to ASME B16.34 and BS 5352. Each valve is tested in accordance with API 598, and marked per MSS SP 25.
7. Main materials: A105, LF2, F5, F22, F304, F316, F347, F321, F51, Monel, 20# Alloy
|
type |
Y pattern |
|
material |
forged |
|
size |
3/8"-2" |
|
standard |
API,DIN,JIS |
|
Origin |
Wenzhou |
Zhejiang xiongtai valve manufacturing Co., Ltd., eattablished in 1998 and situated in Oubei Yongjia, a China hometown of pump and valve is a plant integrating R&D, production, sales and survi of valves and has abundent strengths and plentiful production experience with a staff of about 200 involving several steel valve and steel valve etc., and has obtained certifications of ISO9001, API6D, TS and so on.
