Y-trap water control valve ZMQSY Series
Key Specifications/Special Features:
ZDLSY series pneumatic diaphragm Y-shape trap valve
ZDLSY is a new-generation steam trap valve specially designed by our company for drainage of thermal power plant. The product is based on PRO-linear flow design and secondary throttling theory for reduced erosion and enhanced service life. The valve core and seat apply integral hard alloy and the internal leak rate is ≤ Level VI upon enclosure. The dismountable middle cavity sealing design avoids external leak and facilitates maintenance. The product is suitable for places with combustible or explosive substances and it can be turned on/off according to signal from control system or regulating instrument, thus meeting the service requirement for controlled parameter. Therefore, the valve product is widely used in sectors like thermal power generation.
The product consists of two models positive action and reverse action.
The nominal through diameter rating DN (MM) is 20~100 (3/4"~6)and the nominal pressure rating PN consists of 150lb (2.0MPa), 300lb (5.0MPa), 600lb (11.0MPa), 900lb (15.0MPa), etc.
The applicable temperature is ≤ 600celsius, the air source pressure (MPa) is 0.14-0.4 and the signal scope Pr (KPa) is 20-100 or 40-200. The leak rate is almost 0. The product also includes a variety of specifications.

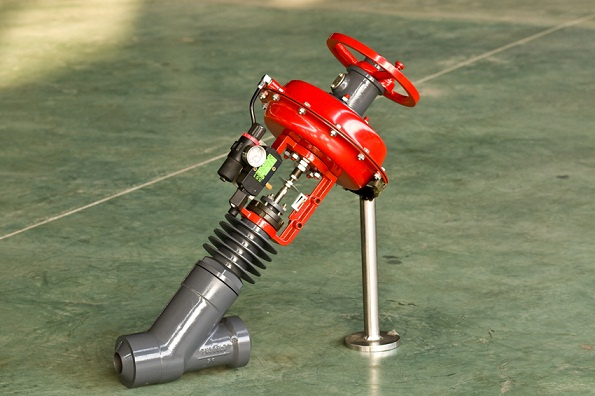

Type of ZMQSY: ZMQSY-type pneumatic film Y-trap; The valve concludes by a new series of pneumatic film implementing agencies and the Y- trap part. (Figure 1) Y-trap is a special regulatory body structure, and the two-ends are welding type which applicable to specific piping. Working principle:? ? ? When the signal pressure enter the diaphragm chamber and generate thrust above the diaphragm, it will compress the spring, then drive the stem to change the flow area between the valve core and valve seat, until the thrust of the spring reaction and signal pressure being balance on the diaphragm, so as to achieve the purpose of automatic adjustment of process parameters.
