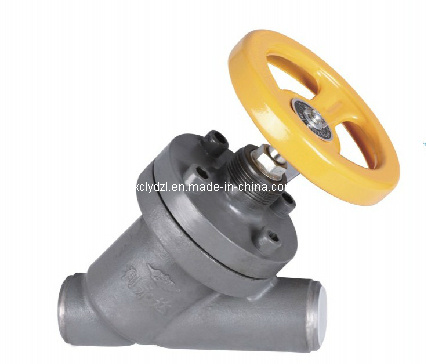

Y Type Cast Steel Ammonia Valve

Name: Y Type Cast Steel Ammonia Valve
Brand: Valve Industry
SKU: 722557665
Availability: InStock
Rating: 4.6 (78 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF
Min Order:	5/Piece
Pay Type:	L/C,T/T

Contact Supplier

Zhejiang Brilliant Refrigeration Equipment Co., Ltd.

Showroom Product Company Profile

Product Description

Technical data:
1.nominal pressure:3.0Mpa
2.Test pressure:4.5Mpa
3.Suitable temperature:-50~150
4.suitable medium:Ammonia ,fluoride

Pay attention :

Globe valve for ammonia system is used in refrigerated-storage and freezing systems in the industries of cooling, refrigeration and air-conditioning as well as the industries of food, beverage, bear, pharmaceutical, ship-building, gas, chemical, petroleum. Etc. It has steady performance. As best sales products, it had passed CE certificaton, and pressure pipe test. Welcome to purchase.

1. The working air pressure: 3.0 mpa, hydraulic pressure: 6.5 mpa
2. Suitable medium: NH3, R12, R22, R502, R407C, R134A, R404A etc. Refrigerants and other refrigerating oil.
3. Suitable temperature: -50°c+150°c
4. Material: Cast steel
5. They are used in marine refrigerator system widely

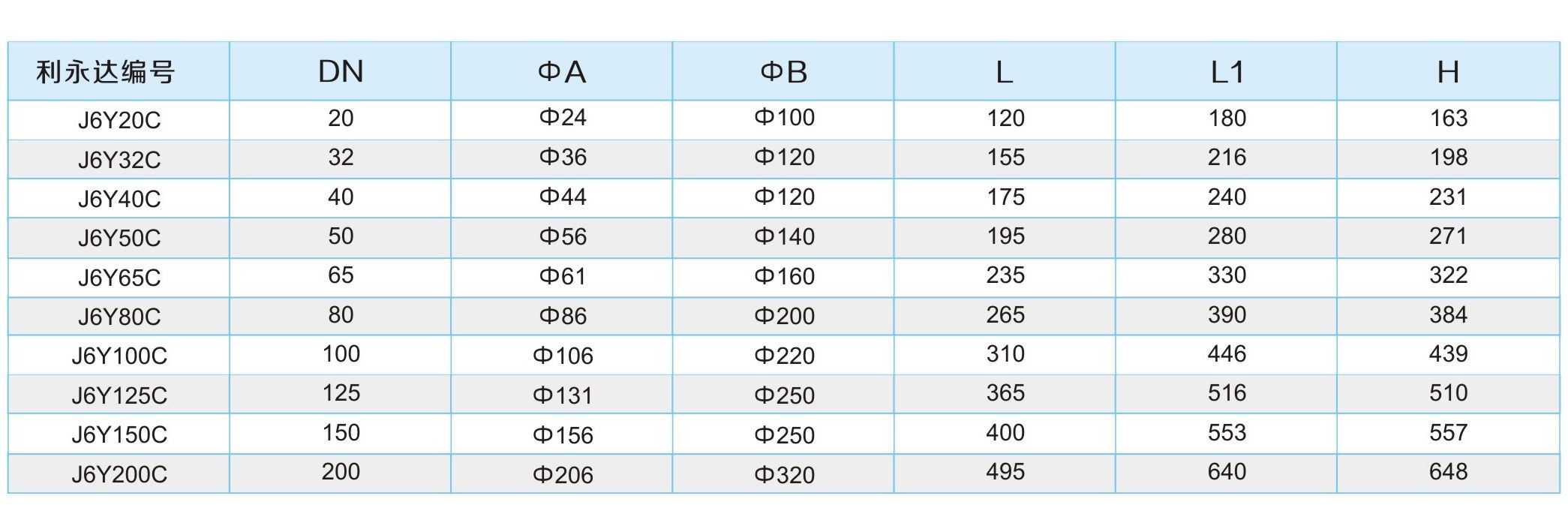

6. DN: Dn20, dn32. Dn40. Dn 50. Dn65. Dn 80. Dn100. Dn125. Dn150. Dn200.

7.Nominal size: 25 (mm)
8.the shape of the open-close part: groove type throttle valve

9. Working temperature: room temperature
10.material: carbon steel

11.Direction of flow: one-way
12.pressure: the atmospheric pressure

13.handwheel type: L7G20

14.Connection: welding and flange

Ammonia valve :

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Structure:	Y-Global Globe Valve
Stem Thread Position:	Outside Screw Stem Globe Valve

Zhejiang Brilliant refrigeration Equipment Co., Ltd, is located Ruao industrial park in Xinchang County, Zhejiang province., China. Our company specializes in producing semi-hermetic refrigeration compressor. Which contains Bizer type compressor and Copeland type compressor. We also produce right-angle pattern globe valve, straight-through type globe valve, compressor valve, Refrigeration valve. And we had in this field since 1992. The enterprise owns the consummate production equipments, the abundant technical force, the perfect quality control system, the quality personnel group so as to produce the quality products. Our objective is "to seek the better developments by our unceasing steps, produce the fine quality for good personality, pay due contribution to the society by the quality goods".

We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
