Threaded Y Type Strainer (Y41)
Quick Details
Standard or Nonstandard: StandardStructure: StrainerPressure: Medium Pressure
Power: NOMaterial: Forged Steel A105NTemperature of Media: High Temperature
Media: BasePort Size: 1''Place of Origin: Zhejiang China (Mainland)
Model Number: SY41-150#/PN16Brand Name: VatacFinish: Silver RAL 7009
Ens: B. WEnds Standard: ASME B16.25Body: Forged Steel A105N
Screen: SS304/SS316/Duplex Stainls SteelClass: ANSI 150#/300#Tests: API 598
Face To Face: ANSI B16.10
Packaging & Delivery
Packaging Detail: Sea Worthy Ply-wood Packing
Delivery Detail: 35 days against purchase order
Specifications
1. API/TUV/CE/API 6D/ISO 2008 9001 2.1'' A105N Butt Welded/Welding Y Strainer 3.18 Months after shipment/12 Months after install
1'' Forged Steel A105N Butt Welded/Welding Bolted Bonnet Y Strainer
The Vatac Y Strainer features a machined groove in both the body and cover for proper screen alignment and to ensure accurate reseating when servicing is required. The gasket is a synthetic fiber that is compressed between the body and cover for maximum strength and durability. Upon request, The Vatac Y Type strainers can be furnished with a blow-off plug. Standard perforated 304 stainless steel screens are furnished for a maximum strength. Different size perforations and meshes are available in stainless steel, monel, and brass to meet specific media requirements. If the media is not indicated, screens for water will be supplied. Self cleaning is accomplished by opening the valve or drain plug connected to the blow-off port.

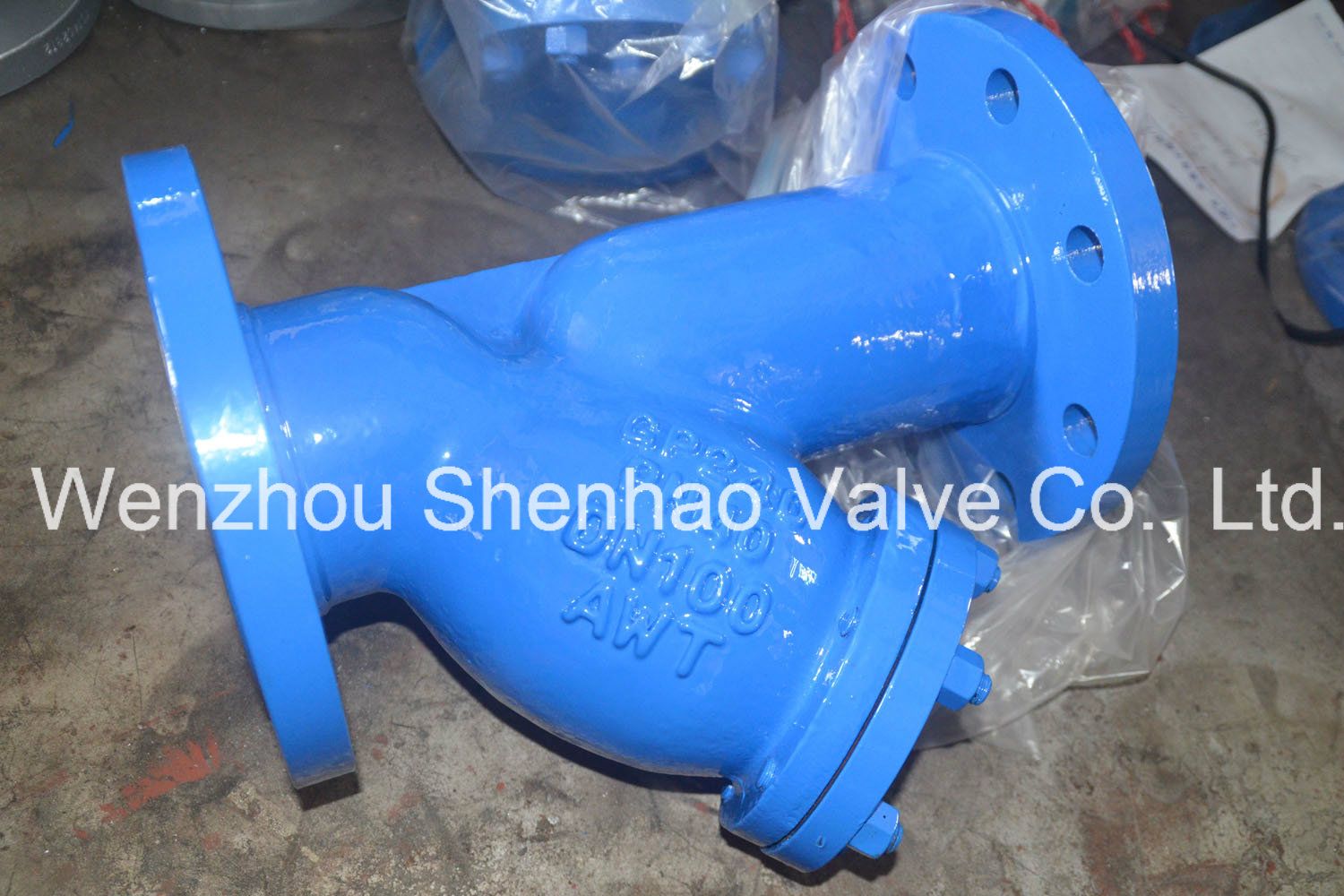

THE CAST IRON STAINER DESIGNING FEATURES
- Cast or Ductile Iron Body and Cover
- Stainless Steel, Gr. 304 or 316 Screen
- Fusion Bonded Epoxy Coating
- Sizes: DN50 through DN300
- Body Styles: Flanged Ends
- Pressure Class: ANSI #125, #150, PN10 or PN16
- Threaded Drain Plug Device
- Optional Basket and T Type Construction
STANDARDS COMPLIANCE:
ASME B16.34, DIN 3202
ASME B16.10, MSS SP-71, BS EN558
ASME B16.1 CLASS 125, ASME B16.5 CL150, EN1092, EN12226
ISO 5208, API 598
We belong to Wuhan Hande Valve & Instrument Co., Ltd branch of the company. It is located in Wuhan, Hubei Province, China. All the names in our certificates are our head quarter which is Wuhan Hande Valve & Instrument Co., Ltd. Our company is chagring of international markets and business.
SHENHAO VALVE Co., Ltd. Has been developed into a large-scale hi-tech enterprise integrating research, development, production and distribution through over twenty years of operation.
We are located in Oubei Town, Zhejiang Province, China, which is typically known as the "Pump Valve Town of China". Integrating with design & development, manufacturing and marketing, SHENHAO Valve Co., Ltd. is Chinese leading Valve Manufacturer, Supplier & Exporter. It has more than 260 staffs, of which 50 are professional technicians. SHENHAO has two main manufacturing bases which covers an land area of 20000 m2 with building area of 12000 m2. SHENHAO is the member unit of China Valve Association as well as China Gas Association, member unit of first class supplying network of CNPC and member unit of fittings supplying network of State Power Corporation.
We hold the principle of "mutual benefit and win-win result" to cooperate with importers. We have exported valves to Spain, Italy, Pakaistan, Turkey and India. Our products are famous of its good quality and favorable price.
We shall try our best to satisfied all the requirements from our customers. We try to do "Zero Explain". Fortunately, we have done it succesfully. Choose us to be one of your suppliers, which your correct choice!
We are looking forward to work with you!
