Quick Details
- Standard or Nonstandard: Standard
- Structure: Pilot
- Pressure: High Pressure
- Power: Solenoid
- Material: Stainless Steel
- Temperature of Media: High Temperature
- Media: Gas
- Port Size: G1/4"~1"
- Place of Origin: Zhejiang, China (Mainland)
- Model Number: YSE-100
- Brand Name: Round Star
- max pressure: 25MPA
- coil: Nass coil from Germany
- why us?: more than 40 years since 1965
- Function: an electromechanical valve for use with liquid or gas
- certificate passed: CE,
- Export Area: ALL OVER THE WORLD
- Company spirit: To challenge our future and pursue and surpass ourselves
- Company value: to make wealth for society and the values of employees realized
- Company style: to be faithful,practical, coorperative and efficient
- Market conception: what we do will be based on the market and customers
Packaging & Delivery
Packaging Details:carton box
Delivery Detail:15 days
Specifications

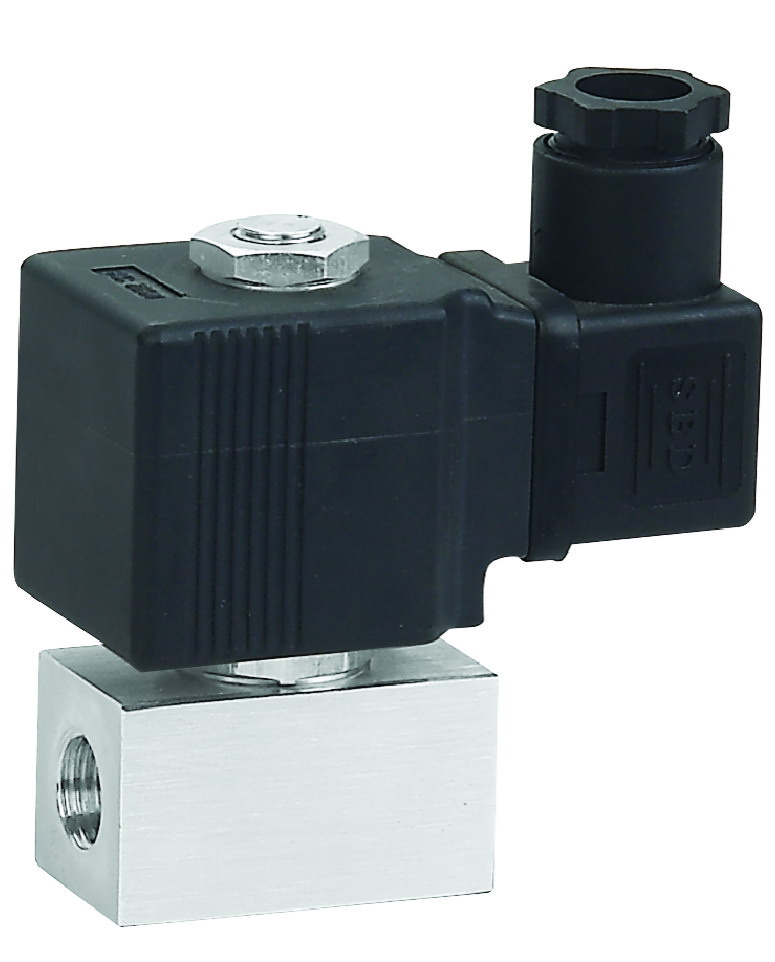

SOLENOID VALVE
1)HIGH PRESSURE,
2)NASS COIL,
3)STAINLESS STEEL BODY,
HIGH QUALITY
SOLENOID VALVE
1) Medium:steam.water
2) Type:N/C
3) Material: Stainless Steel
4) Nass coil from Germany
5) sealer: PTFE
|
MODEL |
YSE-010 |
YSE-015 |
YSE-020 |
YSE-025 |
YSE-030 |
YSE-100 |
YSE-150 |
YSE-200 |
YSE-250 |
|
ORIFICE SIZE |
1.0 |
1.5 |
2.0 |
2.5 |
3.0 |
10 |
15 |
20 |
25 |
|
G CONNECTOIN |
G1/4 G3/8 |
G3/8 G1/2 |
G1/2 |
G3/4 |
G1 |
|
OPERATION TYPE |
DIRECT ACTING |
PILOT |
|
MEDIUM |
LIQUID, GAS |
LIQUID, GAS |
|
TEMP. |
≤180 |
≤100 OR ≤180 |
|
NOMINAL PRE.(Mpa) |
16 / 25 |
10 / 16 |
8 / 10 |
6 / 8 |
4 / 6 |
10 / 16 |
|
PRE.DIFF.MPa |
016 / 025 |
0100 / 0160 |
08 / 010 |
060 / 080 |
040 / 060 |
0.610 / 0.616 |
|
LENGTH MM |
44 |
44 |
44 |
44 |
44 |
60 |
70 |
80 |
90 |
|
HEIGHT MM |
98 |
98 |
98 |
98 |
98 |
125 |
138 |
144 |
154 |
|
POWER V |
AC220 AC110 AC36 DC24 |
