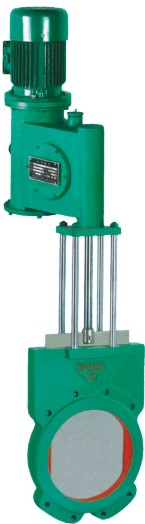

Z273X Electric/Hydraulic Slurry Valve
Nominal pressure: 0.6 MPa, 1.0 MPa, 1.6 MPa
Nominal diameter: DN50~1000mm
Applicable temperature: 200 ° C ~ + 15
Connecting flange: GB/T9113, JB/T79
The main materials: HT250, WCB, CF8
Sealing: Soft seal leakage: A level (zero leakage)
Supporting annex: Installation flange electromagnetic valves, air filter, the valve travel switch, valve locator
Electric/Hydraulic Slurry Valve
1, Size: 2"-48"
2, Material: SS
3, Power: Electric/Hydraulic
4, Type: Knife gate valve
|
Body,bonnet |
Wedge |
Stem |
Sealing |
|
SS,CS,Gray Cast iron |
SS,CS |
SS |
Rubber,PTFE,SS,Hard alloy |
Chief Property And Specifieation
(MPa)
Norminal |
(MPa)
Test Pressure |
Suitable |
(°C)
Working Tenperation |
|
Shell |
seal |
|
0.6 |
0.9 |
0.66 |
Admixtvre Of Duffand Water,Pulp,Studge,Dross,Basic Solution |
≤100°C |
|
1.0 |
1.5 |
1.1 |
Main External And Connecting Dimensions(mm)
mm
Normal Pressure |
L |
D |
D1 |
H |
n-M |
|
PN0.6 |
PN1.0 |
|
50 |
48 |
48 |
125 |
100 |
335 |
4-M16 |
|
65 |
48 |
48 |
145 |
120 |
363 |
4-M16 |
|
80 |
50 |
50 |
160 |
135 |
395 |
4-M16 |
|
100 |
50 |
50 |
180 |
155 |
465 |
8-M16 |
|
125 |
50 |
50 |
210 |
185 |
530 |
8-M16 |
|
150 |
60 |
60 |
240 |
210 |
630 |
8-M20 |
|
200 |
60 |
60 |
295 |
265 |
750 |
8-M20 |
|
250 |
70 |
70 |
350 |
318 |
900 |
12-M20 |
|
300 |
70 |
80 |
400 |
368 |
1120 |
12-M20 |
|
350 |
80 |
80 |
460 |
430 |
1260 |
16-M20 |
|
400 |
90 |
90 |
515 |
482 |
1450 |
16-M22 |
|
450 |
90 |
120 |
565 |
532 |
1600 |
20-M22 |
|
500 |
90 |
130 |
620 |
585 |
1800 |
20-M22 |
|
600 |
140 |
140 |
725 |
685 |
2300 |
20-M27 |
|
700 |
140 |
140 |
840 |
800 |
2500 |
24-M27 |
|
800 |
190 |
190 |
950 |
898 |
2800 |
24-M30 |
|
900 |
203 |
203 |
1050 |
1005 |
3100 |
28-M30 |
|
1000 |
216 |
216 |
1160 |
1115 |
3400 |
28-M30 |
|
1200 |
254 |
254 |
1380 |
1325 |
3600 |
32-M36 |
