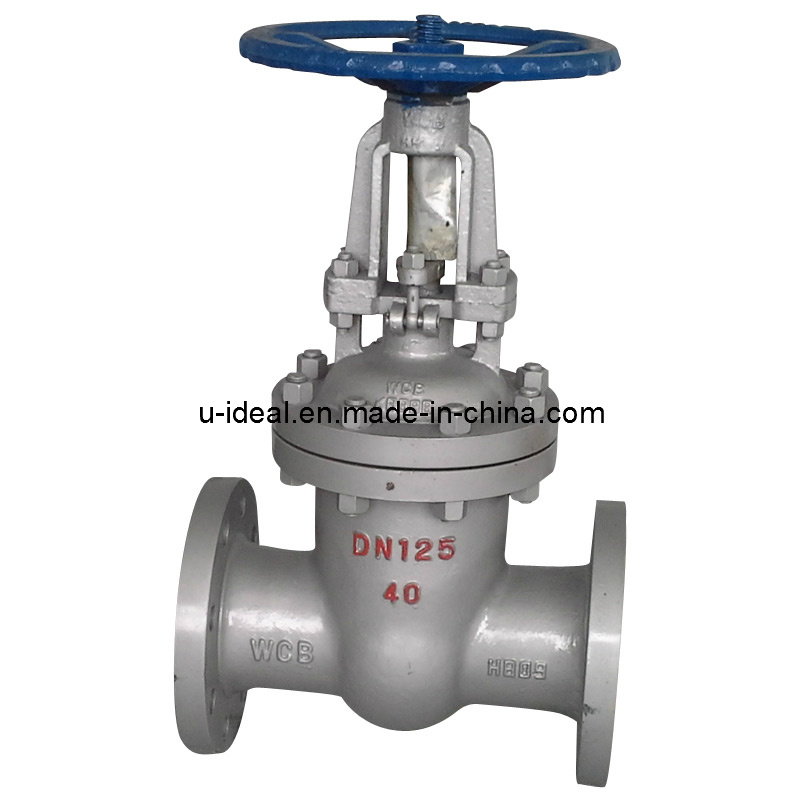

Z41h-16c Flanged Type Gate Valve
| Price: |
US $ 70/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
Characteristics
Cast Steel Gate Valve, Flexible/Solid wedge gate, PTFE or combined packing material, Belleville Spring Loaded Packing Impacting System, Forged Steel Seat, Back Seating Design, Integral Forged Design of Stem, Extended Stem Optional Specification, Rising/Non-rising Stem.
Design Standard
API 6D, API 600, ISO 14313, ISO 10434, DIN 3352
Face to face standard
ASME B16.10, DIN 3202, EN558-1, ISO 5752
Connection standard
ASME B 16.5, ASME B 16.47 A, API 605, ASME B 16.25-2007, MSS-SP-44, ASME B 16.47B, EN1092-1, DIN 2544, DIN 2545, DIN 2546
Testing Standard
API 6D, API 598, API 600, ISO 14313, ISO 10434, ISO 5208, EN 12266
Connection: Butt Welding, Flange
Pressure Rating: PN10-PN64
Size: NPS 2"-36"
Material: WCB, WC6, WC9, CF8, CF8M, CF3, CF3M, etc.
Actuator: Handwheel, Bevel gear, Electric, Pneumatic, etc
Related products: Gate Valve Ball Valve Check Valve Globe Valve Butterfly Valve Knife Gate Valve Cryogenic Valve Water valve two or three ways valve hydraulic valve float valve pressure reducing valve.
| Size | 1/2"-48" |
| Material | WCB, LCB, LCC, WC6, WC9, CF8, CF8M, CF3, CF3M, 4A, 5A A105, LF2, F11, F22, F304, F316, F304L, F316L, F51, F53 |
| Pressure | Class 150 - Class 2500 |
| Face to face standards | ASME B16.10, API 6D, DIN 3202 |
| Connections standards | ASME B16.5, ASME B16.25, ASME B16.47, DIN 2501, BS 4504 |
| Design and standards | API 6D, BS 5351, API 608, ASME B16.34 |
| Technology | CNAS approved laboratotry and Professional technical engineers and R&D team; |
| Certificate | CNAS, CE, DVGW, AGA, CSA, ISO9001, ISO14001, etc
|
| Prod Model: |
Z41H-16C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2"-36" |
| Face To Face Standard: |
Asme B16.10, DIN 3202, En558-1, ISO 5752 |
| Testing Standard: |
API 6D, API 598, API 600, ISO 14313, ISO 10434, Is |
| Pressure Rating: |
Pn10-Pn64 |
| Connection: |
Butt Welding, Flange |
| Material: |
Stainless Steel |
| Connection Form: |
Flange |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Household Usage |
