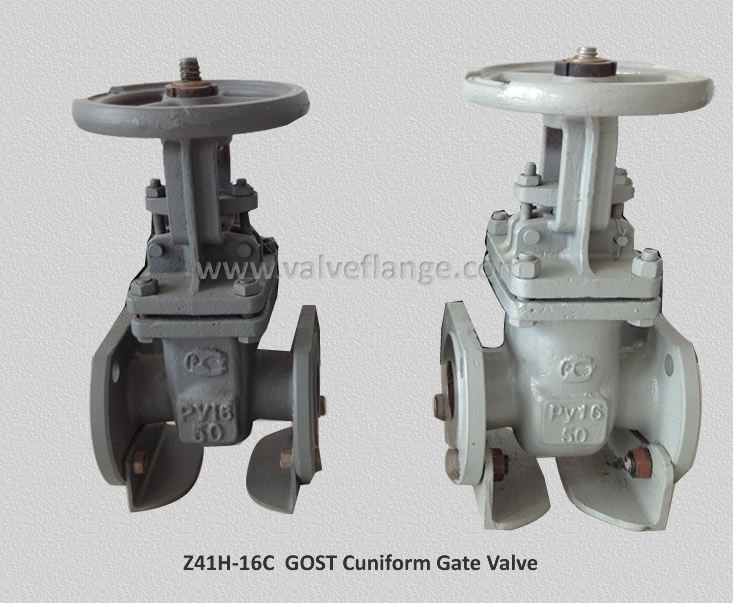

Z41H-16C GOST Cuniform Gate Valve Quick Details
？Standard or Nonstandard: Standard
？Structure: Gate,Stem gate valve
？Pressure: Low Pressure
？Power: Manual
？Material: Casting,WCB
？Temperature of Media: Medium Temperature
？Media: Base
？Port Size: DN50-DN400
？Place of Origin: Hebei, China (Mainland)
？Model Number: Z41H-16C
？Brand Name: PYL
？Terms of trade: Manufacturer
？Certificate: ISO14001,ISO9001
？PN: 1.6
？Strength(water)(Mpa): 2.4
？Enclose(water)(Mpa): 1.76
？Suitable temperature: ≤425
？Suitable medium: Water,Vapour,Oil
？Market: Russia,Ukraine,America,India,Germany and so on
Z41H-16C GOST Cuniform Gate Valve Packaging & Delivery
Packaging Details:
1.woven bag in twenty-foot container
2.put into wooden case 3.pallet
Delivery Detail:7-20days or according your requirement
Z41H-16C GOST Cuniform Gate Valve Material
Parts | Material |
| wheel | Ductile iron |
| Yoke nut | Ductile iron |
| Stem | stainless steel |
| Packing el | Graphite |
| Disc | stainless steel |
| Valve body | WCB 20#steel |
| Sealing | Stainless steel |

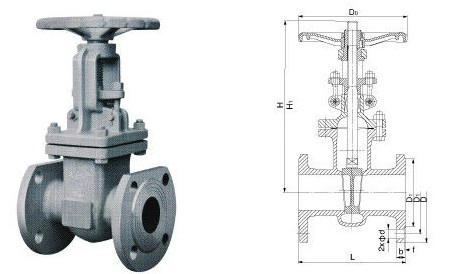

Z41H-16C GOST Cuniform Gate Valve outline and connecting measurement
Type |
Nominal pressure(mm) |
Measurement(mm) |
Reference Weight(kg) |
L |
D |
H |
|
Z41H-16C |
50 |
180 |
160 |
285 |
12.7 |
Z41H-16C |
80 |
210 |
195 |
337 |
20.5 |
Z41H-16C |
100 |
230 |
215 |
383 |
27 |
Z41H-16C |
150 |
280 |
280 |
522 |
52 |
Z41H-16C |
200 |
330 |
335 |
647 |
80 |
Z41H-16C |
250 |
450 |
405 |
815 |
119 |
Z41H-16C |
300 |
500 |
460 |
886 |
156 |
Z41H-16C |
400 |
600 |
580 |
1241 |
156 |
Z41H-16C GOST Cuniform Gate Valve Specification
Type | Nominal pressure(Mpa) |
Testing pressure(Mpa) |
Suitable temperature | Suitable medium |
Z41H-16C |
1.6 |
Strength (water)2.4 |
Enclose(water)1.8 |
≤425 |
Vapour ,Water,Oil |
