Specifications
1) Size: 50~200mm
2) Pressure class:0.6/1MPa
3) Temperature: 80 C
4) Suitable medium:water.

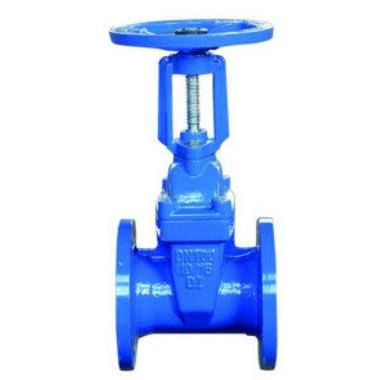

Z41X-10/16Q Rising Soft sealing Gate valve
Technical Data
1) Size: 50~200mm
2) Pressure class:0.6/1MPa
3) Temperature: 80 C
4) Suitable medium:water
5)Surface: Color-painted; self-colored; Electro Galv.; Hot Dipped Galv.
6) Special specifications and marks can be made according to customers requirments
7)Packing details: gunny bags or plastic bags, carton then in pallet or as required
We manufacture products according to drawings, so please connect us with your specific requests!
Specifications
Steel iron rising stem gate valve
1. Flange end
2. PN10 & PN16
3. Trim: bornze, stainless steel
Steel / iron rising stem gate valve
Design and manufacture standard: GB12234,GB12232,AP1602
Structure length standard: GB12221,ANSIB16.10
Pressure test standard: GB13927,AP1598
Z41T-16
Z41T-16
1. Technical feature
working pressure: 1.6Mpa
ruggedness test: 2.4Mpa
seal test: 1.76Mpa
operating temperature: ≤100°C
Suitable medium: water, vapor, oils, nitric acid, acetic acid and etc.
2. 1.6Mpa product shape connection dimension(mm):
DN | L | D | D1 | D2 | DO | H | H1 | Z-d |
50 | 178 | 160 | 125 | 100 | 200 | 340 | 395 | 4-Φ18 |
65 | 190 | 180 | 145 | 120 | 200 | 370 | 440 | 4-Φ18 |
80 | 203 | 195 | 160 | 135 | 250 | 420 | 510 | 8-Φ18 |
100 | 229 | 215 | 180 | 155 | 250 | 480 | 590 | 8-Φ18 |
125 | 254 | 245 | 210 | 185 | 300 | 580 | 720 | 8-Φ18 |
150 | 267 | 280 | 240 | 210 | 300 | 620 | 780 | 8-Φ23 |
200 | 292 | 335 | 295 | 265 | 350 | 750 | 970 | 12-Φ23 |
250 | 330 | 405 | 355 | 320 | 400 | 880 | 1150 | 12-Φ25 |
300 | 356 | 460 | 410 | 375 | 400 | 1070 | 1390 | 12-Φ25 |
350 | 381 | 520 | 470 | 435 | 500 | 1170 | 1540 | 16-Φ25 |
400 | 406 | 580 | 525 | 485 | 500 | 1330 | 1750 | 16-Φ30 |
