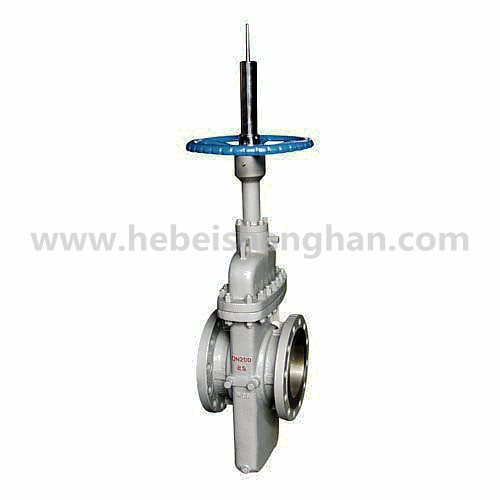

Z43 Flat Gate Valve with Conduction Flow Hole

Name: Z43 Flat Gate Valve with Conduction Flow Hole
Brand: Valve Industry
SKU: 702061422
Availability: InStock
Rating: 4.9 (61 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Hebei Shanghan Import and Export Trade Co., Ltd.

Showroom Product Company Profile

Flat gate valve with conduction flow hole

Specifications

Flat Gate Valve With Conduction Flow Hole
port size:40-1000mm
pn:1.6MPa
temperature:-29-120
structure:gate

Flat Gate Valve With Conduction Flow Hole PN16 Information:

Usage:This valve is used to low and short pipelines or power station which need full-ball cleaning such as petroleum or petroleum products,natural gas,airport and electronic enviroment to shut the flowing of medium.

Main parts and materials
Parts name			Material
Valve body,Bonnet			WCB
Disc			Carbon steel+Stainless steel
Stem			Stainless steel
Function and specification
Type	PN(Mpa)	Testing pressure(Mpa)		Suitable temperature	Suitable medium
		Strength	Enclose
(K)Z43W/543W/643W/943W/F/Y-16C	1.6	2.4	1.8	≤200°C	Petroleum products,High-sulfur natural gas
(K)Z43W/543W/643W/943W/F/Y-25	2.5	3.8	2.8
(K)Z43W/543W/643W/943W/F/Y-40	4.0	6.15	4.51
(K)Z43W/543W/643W/943W/F/Y-64	6.4	9.75	7.15
(K)Z43W/543W/643W/943W/F/Y-100	10.0	14.4	10.56

Prod Model:	Z43
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Silver
Suitable Medium:	Oil , Gas , Water, and Other Liquids, Gases
Valve Material:	Stainless Steel,Carbon Steel,Steel,Grey Iron,Ducti
Linking Method:	Thread Links,Flange Link,Welded Link
Valve Standard:	API,GOST,Japanese Standard,German Standard
Working Pressure:	High Pressure,Low Pressure
Material:	Stainless Steel
Application:	Water Industrial Usage
Connection Form:	Inside Thread
Actuator:	Spurgear
Seal Surface:	2Cr13
