Z44T-10 Russia Standard Rising Stem Cast Iron Gate Valve Quick Details
？Standard or Nonstandard: Standard
？Structure: Gate,Stem gate valve
？Pressure: Low Pressure
？Power: Manual
？Material: Casting,cast iron
？Temperature of Media: Low Temperature
？Media: Base
？Port Size: DN50-DN400
？Place of Origin: Hebei, China (Mainland)
？Model Number: Z44T-10
？Brand Name: PYL
？Terms of trade: Manufacturer
？Certificate: ISO14001,ISO9001
？PN: 1.0
？Strength(water)(Mpa): 1.5
？Enclose(water)(Mpa): 1.1
？Suitable temperature: ≤200
？Suitable medium: Water,Vapour
？Market: Russia,Ukraine,America,India,Germany and so on
Z44T-10 Russia Standard Rising Stem Cast Iron Gate Valve Packaging & Delivery
Packaging Details:
1.woven bag in twenty-foot container
2.put into wooden case 3.pallet
Delivery Detail:7-20days or according your requirement
Z44T-10 Russia standard rising stem cast iron gate valve
1.ISO14001,9001
2.Manufacturer
3.Competitive price
4.Mass stock
Z44T-10 Russia Standard Rising Stem Cast Iron Gate Valve Material
Parts | Material |
| wheel | Grey iron |
| Yoke nut | Grey iron |
| Stem | Steel |
| Packing | Graphite |
| Disc | Grey iron |
| Valve body | Grey iron |
| Sealing | Brass |

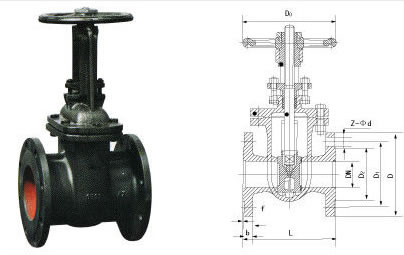

Z44T-10 Russia Standard Rising Stem Cast Iron Gate Valve outline and connecting measurement
Type |
Nominal pressure(mm) |
Measurement(mm) |
Reference Weight(kg) |
L |
D |
D0 |
|
Z44T/W |
50 |
180 |
160 |
169 |
10.752 |
80 |
210 |
195 |
190 |
17.5 |
100 |
230 |
215 |
190 |
21.15 |
150 |
280 |
280 |
240 |
45.5 |
200 |
330 |
340 |
320 |
81.5 |
250 |
450 |
395 |
350 |
116.2 |
300 |
500 |
445 |
350 |
162.3 |
Z44T-10 Russia Standard Rising Stem Cast Iron Gate Valve Specification
Type | Nominal pressure(Mpa) |
Testing pressure(Mpa) |
Suitable temperature | Suitable medium |
Z44T/W |
1.0 |
Strength (water)1.5 |
Enclose(water)1.1 |
≤200 |
Vapour ,Waterl |
