Specifications

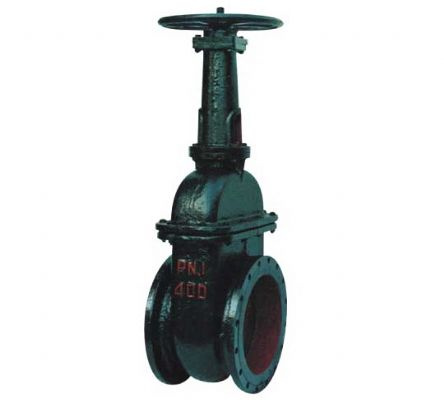

Z542W-1.0 Cuniform Double Disc Gate Valve
1.PN:1.0
2.Warranty Period:12Months
Z542W-1.0 Cuniform Double Disc Gate Valve
Main parts and materials |
Parts name | Material |
Valve body,Bonnet,Disc | Grey iron |
Packing | Asbestos packing,flexible graphite |
Seal | Grey iron |
Stem | Carton steel Stainless steel |
Yoke nut | Brass Ductile iron |
Function and specification |
Type | PN(Mpa) | Testing pressure(Mpa) | Suitable temperature | Suitable medium |
Strength | Enclose |
Z542W-1 | 0.1 | 0.2 | 0.11 | ≤100°C | Coal gas |
Z942W-1 |
Outline and connecting measurement |
Type | DN(mm) | Measurement | Weight |
L | D | D1 | D2 | b | Z-Φd | H | D0 | L1 |
Z542W-1 | 500 | 350 | 640 | 600 | 568 | 30 | 20-Φ23 | 2144 | 500 | 450 | 560 |
600 | 390 | 755 | 705 | 670 | 30 | 20-Φ25 | 2495 | 500 | 450 | 930 |
700 | 430 | 860 | 810 | 775 | 32 | 24-Φ25 | 2953 | 500 | 500 | 1246 |
800 | 470 | 975 | 920 | 880 | 34 | 24-Φ30 | 3328 | 640 | 640 | 1790 |
900 | 510 | 1075 | 1020 | 980 | 36 | 24-Φ30 | 3175 | 640 | 640 | 1986 |
1000 | 550 | 1175 | 1120 | 1080 | 36 | 28-Φ30 | 3938 | 640 | 640 | 2660 |
1200 | 700 | 1375 | 1320 | 1280 | 40 | 32-Φ30 | 4835 | 640 | 640 | 3564 |
1400 | 900 | 1575 | 1520 | 1480 | 44 | 36-Φ30 | 5560 | 640 | 640 | 7370 |
1600 | 1000 | 1785 | 1730 | 1690 | 48 | 40-Φ30 | 6300 | 640 | 640 | 11500 |
