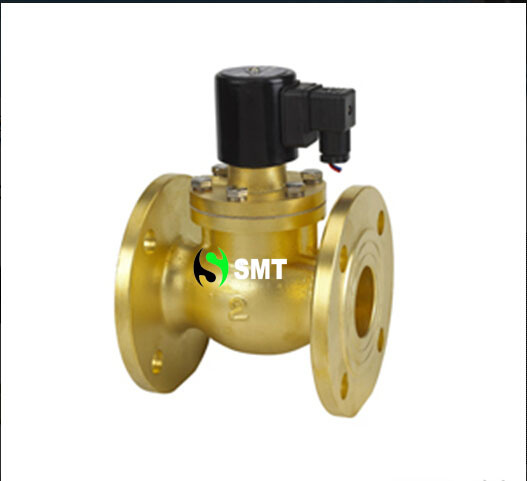

ZCZ series steam solenoid valve, G1 / 2 "~ G2" and flange details:
Medium: Steam, gas, water, oil
Medium temperature: -5 ~ 1 80 º C
Work Type: Pilot
Working Pressure: Normally closed: 0.4 ~ 10kgf / cm2
Piston seals, sealing material: Polytetrafluoroethylene (PTFE)
Coil protection factor: IP54 steel coil
Product use:
Applicable to steam as the heating medium, heaters, radiators, dryers and textile stereotypes, steam dyeing machines, vacuum resurgence tobacco machines, dryers and other equipment vegetables steam pipes were two with automatic and remote on-off switching to achieve automatic temperature control.
Features:
Solenoid pilot valve opening secondary structure, DN 100 cubic open valve structure, small size, low power.
Have good thermal insulation and cushioning member between the pilot valve and the main valve.
Selection of temperature, corrosion-resistant high-magnetic material, piston and molding the polyfluoroethylene port seal, high performance and long life.
Type: Normally closed.
| Model | Joint Size | Orifice | CV value | Length(L) | High(H) | Working Temperature | Working Pressure | Rated Voltage | Material |
| ZCZ-15 | G1/2" | 15 | 3.1 | 81 | 150 | -5 ~180 ≤180 | 0.4~10kgf/cm 2 | 220VAC/50HZ 110VAC/50HZ DC24V DC12V | Brass
Iron body
Copper cover
Brass
Siamese
Flange |
| ZCZ-20 | G3/4" | 20 | 5 | 102 | 160 |
| ZCZ-25 | G1" | 25 | 9.5 | 110 | 170 |
| ZCZ-32 | G1¼" | 32 | 12 | 136 | 195 |
| ZCZ-40 | G1½" | 40 | 21 | 137 | 200 |
| ZCZ-50 | G2" | 50 | 30 | 141 | 210 |
| ZCZ-40 | G1½" | 40 | 21 | 170 | 220 |
| ZCZ-50 | G2" | 50 | 30 | 187 | 243 |
| ZCZ-15F | 4-Φ13.5Φ65 | 15 | 3.1 | 120 | 170 |
| ZCZ-20F | 4-Φ13.5Φ75 | 20 | 5 | 125 | 180 |
| ZCZ-25F | 4-Φ13.5Φ85 | 25 | 9.5 | 125 | 193 |
| ZCZ-32F | 4-Φ17.5Φ100 | 32 | 12 | 140 | 250 |
| ZCZ-40F | 4-Φ17.5Φ110 | 40 | 21 | 141 | 233 |
| ZCZ-50F | 4-Φ17.5Φ125 | 50 | 30 | 158 | 244 |
| ZCZ-40F | 4-Φ17.5Φ110 | 40 | 21 | 196 | 240 | Cast iron |
| ZCZ-50F | 4-Φ17.5Φ125 | 50 | 30 | 205 | 263 |
| ZCZ-65F | 4-Φ17.5Φ145 | 65 | 45 | 240 | 320 |
| ZCZ-80F | 4-Φ17.5Φ160 | 80 | 70 | 255 | 330 |
| ZCZ-100F | 4-Φ17.5Φ180 | 100 | 110 | 340 | 370 |
| ZCZ-125F | 4-Φ17.5Φ210 | 125 | 220 | 400 | 510 |
| ZCZ-150F | 4-Φ22Φ240 | 150 | 230 | 400 | 570 |
