ZDLSY CONTROL VALVE:

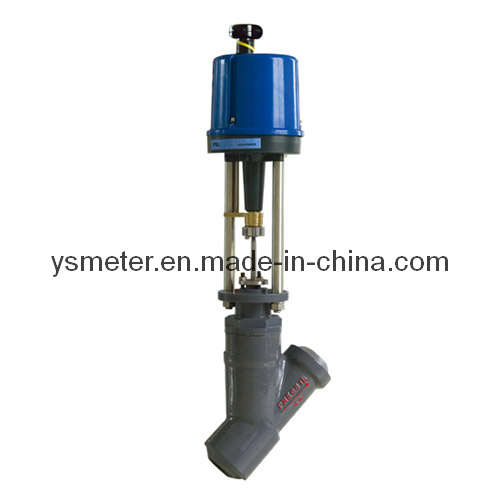

1)ZDLSY electric operated y-shape trap valve: ZDLSY is a new-generation steam trap valve specially designed by our company for drainage of thermal power plant. The product is based on PRO-linear flow design and secondary throttling theory for reduced erosion and enhanced service life. The valve core and seat apply integral hard alloy and the internal leak rate is ≤ Level VI upon enclosure. The dismountable middle cavity sealing design avoids external leak and facilitates maintenance. The product is suitable for places with combustible or explosive substances and it can be turned on/off according to signal from control system or regulating instrument, thus meeting the service requirement for controlled parameter. Therefore, the valve product is widely used in sectors like thermal power generation.
2)The product consists of two models-positive action and reverse action. The nominal through diameter rating DN (MM) is 20~100 (3/4"~10")and the nominal pressure rating PN consists of 150lb (2.0MPa), 300lb (5.0MPa), 600lb (11.0MPa), 900lb (15.0MPa), 1500lb, etc. The applicable temperature reach up to 600 Celsius, the air source pressure (MPa) is 0.14-0.4 and the signal scope Pr (KPa) is 20-100 or 40-200. The leak rate is almost 0. The product also includes a variety of specifications.
SpecificationsSteam Trap
Widely applied to power plants, chemical industry, petroleum, metallurgical and other industrial equipment.
Steam Trap
Material
Name
Material
Body
A105, WC9, 12Cr1MoVG
Plug
304+STL, 316+STL
Stem
25Cr2Mo1V, 316
Seat
304+STL, 316+STL
Technical Parameter
DN
15
20
25
32
40
50
65
80
100
Kv
3
5
8
12
17
29
43
70
110
Rated travel
10
16
25
40
Diaphragm effective area
350
350
560
PN
PN16, 40, 64, 100, 150, 160, 200, 250
TEMP
-20 ~ +600
Signal range
20 ~ 100, 40 ~ 200, 80 ~ 240
Supply pressure
0.14 ~ 0.40
Leakage
V, VI
