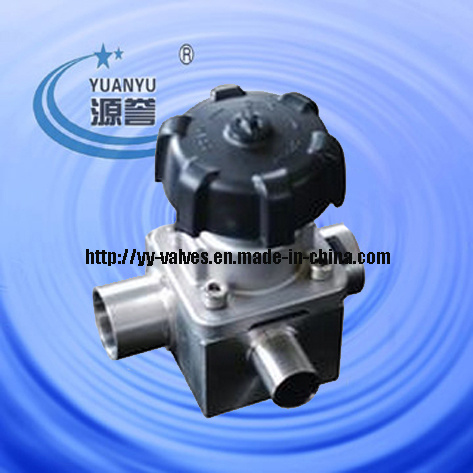

Zero deadleg T type aseptic diaphragm valve
1)Material quality: 316L Forging
2)Standard: DIN, 3A, SMS, ISO/IDF, BS/RJT, ASME/BPE etc
3)Connection: Weld ends. Clamped ends
4)Material of seal: EPDM+PTFE FDA: 177.26600
5)Size: Dn6-dn80&1/4"-3"
6)Power: Handle/pneumatic head
7)Three drive forms: Normally closed, normally opened and opened & closed by two air flues separately.
8)Working principle: Remote-controlled operation by the driving gear or manual operation by the handle
Medium: Beer, dairy, beverage, pharmacy
Don't hesitate to contact us if you need more details. For all products we can produce according to your requirement
CE Certificate can be provided.
| Technical Data |
| Material | Contact with the product components | 316L forging(1.4409) | Can provide material inspection report |
| Materal no contact with the product components | 304(1.4301) |
| Sealing material | Standard | EPDM+PTFE | Adopt sealing material with all the seal material the FDA 117.2600 |
| Option | EPDM |
| Pressure | Pressure of work | 16 bar |
| Control air pressure | 5-8 bar |
| Temperature | Working temperature | EPDM(-40 ~+130 degree), EPDM+PTFE(-5~+160degree) |
| Surface treatment | Inside surface treatment | Ra≥0.4-0.8μm |
|
| Surface treatment | Sand blasket |
|
| Connection | The diameter welding | DIN11850-2,DIN11850-1,3A,SMS,ISO,IDF,BS,BPE.... |
| Connection mode: | weld, triclamp,flange,wled socket,screw etc |
| Body mode | Straight ,T type, U type, L type,Multi type can be chosen |
| Optional driven | Brainpower |
| Pneumatic control | Pleastic actuator and stainless steel actuator |
| Manual handle mode | ABS or stainless steel handle |
Wenzhou Yuanyu Mechanical Co., Ltd. is the professional manufacturer that producing high-precision sanitary valves, pipe- fittings and fluid equipment. Such as stainless steel sanitary butterfly valve, check valve, diaphragm valve, ball valve, plug valve, pipe-fittings(elbow, tee, ferrule, clamp), stainer, cleaning ball, sanitary pump, and so on.
The products are widely applied in dairy, beer, food, Pharmaceutical, beverage, cosmetics and chemical industry etc areas.
All our products are made from stainless steel 304, 316L And by CNC machine, strictly according to DIN, SMS, ISO, IDF, 3A RJT, DS, BS, BPE industrial standard request.
Great quality and more than ten year experience get many domestic customers' Recognition. We have been supplier of Snowflake beer and Panda group for more than 5 years.
We have exported our products in the international market for 8 years.
In order to meet the demand of expanding market constantly and satisfy the requirements of customers"high quality, low price", yuanyu promotes its quality constantly based on the advanced management system, first-class quality and service, making "yuanyu"become a satisfactory cooperation partner domestically and internationally.
