MODEL ZKS VACUUM CHARGING MACHINE

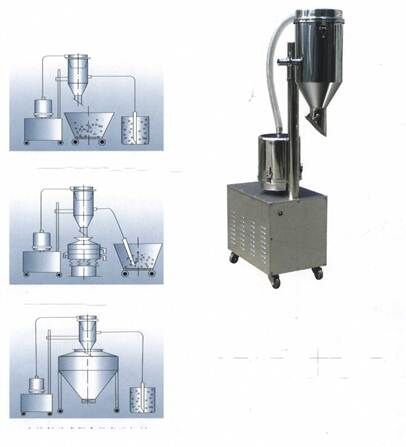

Model ZKS Vacuum charging machine is specially designed for lifting granules to higher position, such as for packing machine, pulverizer, vibration screen etc. It consists of feeding pipe, hopper, cloth bag filter, reverse-blowing device, vacuum pump and pneumatic T-connection valve etc.
| Model | Motor powder (kw) | Lifting capability (kg/h) |
| ZKS-1 | 1.5 | 400 |
| ZKS-2 | 2.2 | 550 |
| ZKS-3 | 3 | 800 |
| ZKS-4 | 5.5 | 1500 |
Utilizing the vortex vacuum pump, the feeding nozzle and the whole system lie in the vacuum condition. Powder together with the air is absorbed into the nozzle, forming the feeding air current which go through feeding pipe to the hopper. There occurs the separation between air and feeding material. The separated materials enter the receiving equipment.
We are professional pharmaceutical machinery manufacturer and exporter in China. Our main products are tablet press, blister packing machine, bag packing machine, colloid mill, mixer, capsule filling machine, coater, dryer, granulator, labeling machine and etc. All tasks from casting to metal machining, and general assembly are accomplished by itself. ZP-37 tablet press, DPP25 Blister Packing Machine and Fully Automatic Bottling and Packing line and so on all meet with GMP standard, which are on behalf of tablet press product developing direction and win the certificates for Shanghai excellent science technology products.
With wonderful reputation, our products have been sold through out China and have exported to many foreign countries and regions around the world such as Australia, USA, Canada, Malysia, Bulgaria, Russia and etc.
Welcome to contact us, all enquiries from all customers both at home and abroad will be highly appreciated by us and we are sure that you will get a satisfactory answer once we get your enquiry.
