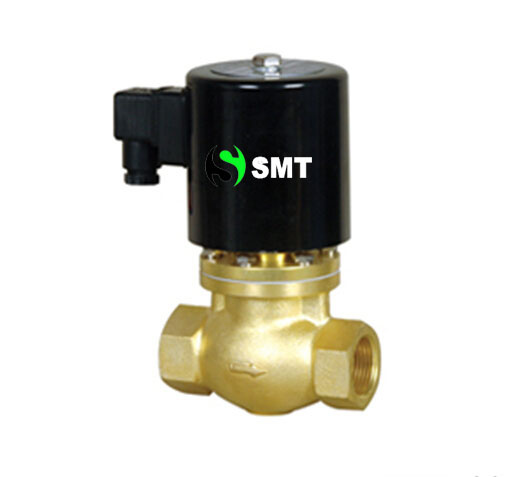

ZQDF series steam solenoid valve, G1 / 2 "~ G2" and flange details:
Medium: Steam, liquid, gas, oil
Medium temperature: -5 ~ 180 º C
Pressure: Normally closed: 0 ~ 8kgf / cm2
Body material: Brass (casting), cast iron
Seal Material: Teflon (PTFE)
Coil protection factor: IP54 steel coil
Product use:
Generic class solenoid valve for automatic control of a variety of media pipeline, and is especially suitable for non-pressure or low-pressure systems, such as high artesian bad, fans, water siphon vacuum systems.
Features:
Set to open direct acting valves and pilot operated valve opening two one-step direct-acting special structure.
No pressure can also open the main valve, low dropout flow, wide range of applications.
PTFE seal, good heat resistance.
Type: Normally Closed
| Model | Joint Size | Orifice(mm) | CV Value | Length(mm) | High(mm) | Working pressure (bar) | Body material |
| ZQDF-15 | 1/2" | 15 | 3.7 | 82 | 150 | 0-8 | Forged Brass |
| ZQDF-20 | 3/4" | 20 | 7 | 100 | 192 |
|
| ZQDF-25 | 1" | 25 | 11 | 110 | 195 |
| Forged Brass |
| ZQDF-32 | 1-1/4" | 32 | 14 | 118 | 206 |
|
| ZQDF-40 | 1-1/2" | 40 | 24 | 125 | 209 |
| Forged Brass |
| ZQDF-50 | 2" | 50 | 35 | 128 | 225 |
|
| ZQDF-15F |
Flanged
| 15 | 3.7 | 101 | 185 |
| All copper flange |
| ZQDF-20F | 20 | 7 | 107 | 210 |
|
| ZQDF-25F | Flanged | 25 | 11 | 106 | 219 |
| All copper flange |
| ZQDF-32F | 32 | 14 | 120 | 240 |
|
| ZQDF-40F | Flanged | 40 | 24 | 146 | 248 |
| All copper flange |
| ZQDF-50F | 50 | 35 | 146 | 255 |
|
