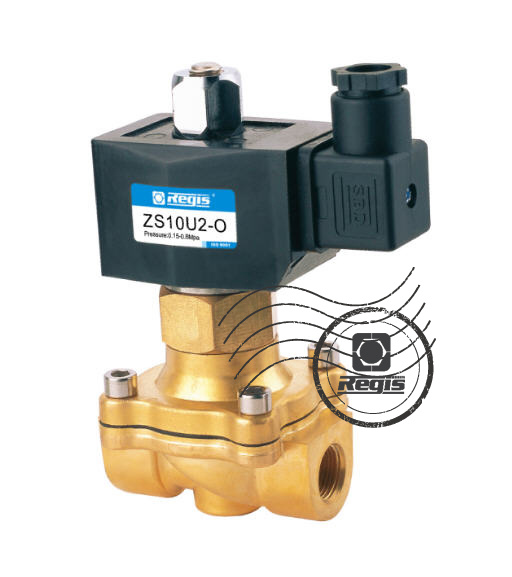

Zs Series Normal Open Solenoid Valve
| Price: |
US $ 7.50/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union |
ZS Series valves have similar function like 2W series valves. It is also one of the most popular 2/2 solenoid valve. ZS series solenoid valves also start working at zero differential pressure and this valve also enjoys wide range sizes for threads from 1/8" to 2", including stainless steel body, brass body. Normal close and normal open is optional. But there are two points that ZS is different from 2W valves. The first one is the connecting type. ZS valve has flange connecting way besides thread connecting. The other is about the coil. ZS valve's coil is DIN type.
1: 2-way normally closed pneumatic valve solenoid valve, Closed when de-energized, open when energized.
2: Serialized pneumatic valve, small in size, large flow rate, widely uses
3: Pneumatic valve Body material: Forged brass cast brass (for orifice Φ 32, 40, 50only)
4: Ambient Temp. 0 -120
5: Flow as the arrow, mounts in any position; Best position is Solenoid vertical and upright direction.
6: Voltage: 220VAC/230VAC/240VAC/110VAC/24VAC 50/60Hz 24VDC/12VDC;
7: Coil can fix Germany Nass Coil, for orifice under Φ 16-25mm only
8: This pneumatic valves are offered NBR, VITON, EPOM etc for Seals and diaphragm to provide on-off control of various fluids
ZS Series Normal Open Solenoid Valve| Model | ZS10-O | ZS15-O | ZS20-O | ZS25-O | ZS35-O | ZS40-O | ZS50-O |
| Working Medium | Air, Gas, Water, Hot Water, Liquid |
| Type | 2/2 Normal Open |
| Orifice(mm) | 15 | 16 | 20 | 25 | 32 | 40 | 50 |
| Cv | 4.8 | 4.8 | 7.6 | 12 | 24 | 29 | 48 |
| Joint Size | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| Working Pressure | 0-5Bar AC; 0-3 Bar DC |
| Max. Pressure Resistance | 10Bar |
| Note | Seal Material: NBR/EPDM/VITON |
| Environment Temperature: 0-65 |
| Max. Temperature For Media: NBR: 80 EPDM: 130 VITON: 120 |
| Valve Body: ZS-O: brass; ZSS-O: SS304 |
| Prod Model: |
ZS-06, ZS-08, ZS-10... |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Port Size: |
1/4"-2" |
| Type: |
Direct Acting |
| Connection Form: |
Thread |
| Valve Structure: |
Direct Action Diaphragm Structure |
| Power Supply: |
AC Solenoid Valve |
| Application: |
Water Industrial Usage |
Location and History
Regis' Manufacturing plant is located in Ningbo city, Zhejiang Province. Our factory was built in the spring of 1999 by Mr. Jason Yuan. After 15 years development, Regis has already grown up from just a hardware producer to a modern and famed pneumatic manufacturer in China.
A Wide Range of Products and Services
Its current catalogue of standard products includes more than 1, 000 items including air cylinders, solenoid valves, air source treatments, couplings, connectors and other related accessories, all of them designed to meet industrial needs in handling all kinds of gases and liquids such as water, air, steam, oils refrigerants, oxygen, liquid nitrogen, corrosive products, among others. Laboratories, petroleum, engineering, building, food and beverage, refrigeration, heating, automobile, metallurgical, textile and petrochemical are some of the industries that testify to the quality of each of Regis' Products.
Achievement and Honor
Regis ' Sales performance has exceeded 20 million us dollars in 2010. We have been awarded the medal of the quickest developing automation industry by government.
The excellence of all our products, proven by several national and international standards and quality control boards, is guaranteed by the total quality program enforced throughout the company.
They function with high tech machines and production tools as well as computerized production management system. All steps in a product development, from design onto testing, production, logistics, and finally delivery, are regularly subject to rigorous quality controls.
Our Ambition
To be the best pneumatic manufacturer in China
Regis ' Products are spread into 98 Countries all over the world. Now our aim is to compete with the world first class in the next 10 years. We plan to set 800 sales distribution throughout the world which can tight knit network enables our customers to benefit from high accessibility and short delivery times. The supreme ambition is to strengthen the ability to give the best service possible
