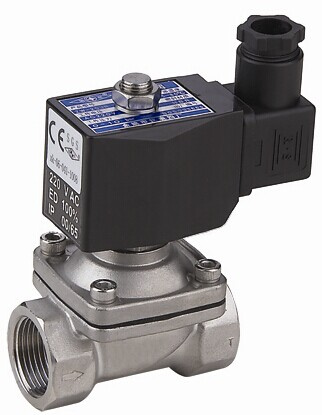

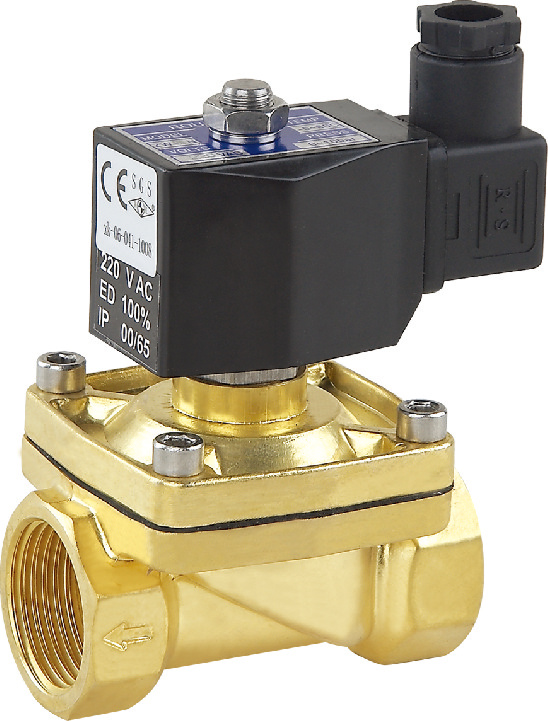

Zw-25 Water Solenoid Valve 1''

Zw-25 Water Solenoid Valve 1''
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T,Western Union
Can be used under zero pressure, reliable performance, with high quality and resonable price!


Specifications
2way miniature water strainless steel solenoid valve 12v
1) Body material: Brass / stainless steel
2) Operating type: Normally closed /normally open

Technical Specifications

-- Media: Gas, Water, Air, Oil (below 20cst), Weak acid & alkali, Vacuum
-- Pressure: Normally Closed 10bar; Normally Open 6bar
--Function type: Normally Closed (N/C), Normally Open (N/O)
--Temperature: -5 ~80° C
--Mode of action: Semi-direct lift type
--Body material: Brass/Stainlesssteel
-- Sealing material: NBR/FKM/EPDM
--Protection class: IP65
OPTIONS
EPDM (E): Suitable to water, hot water, gas, Freon, the MAX. 110° C; In case you choose EPDM, please state "E" in your order.
Viton (V): Suitable to hot water, acid, alkali, chemical salt, oil and hydrocarbon; The MAX. 130° C. In case you choose Viton, please state "V" in your order.


ZW-15


ZW-15NJ
Model ZW-10N ZW-15N ZW-20N ZW-25N ZW-32 ZW-40 ZW-50
G Connection 3/8" 1/2" 3/4" 1" 1¼" 1½" 2"
Orifice Size mm 15 15 20 25 32 40 50
Cv Value 4.8 4.8 7.6 12 24 29 48
L mm 60 60 62 82 102 110 134
H mm 111 111 117 124 156 161 176
Medium temperature -5 ~80°C        (-10~130°C)
Pressure bar Normally closed :0~10;    Normally Open:0~6
Power AC:220V~AC:230V/50-60HZ  22VA;  AC110 ~AC:120V/50-60HZ  22VA;  DC24  18W;  DC12  17W ;  Range:±10%,

Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Why Us: Over 45 Years Since 1965
Authentication: CE,TUV, FDA, RoHS
Type: Distribution of Direct Acting
Connection Form: Thread
Valve Structure: Direct Action Diaphragm Structure
Power Supply: AC Solenoid Valve
Application: Industrial Usage
Our factory was founded in 1965. Through 50 years of development, we have become one of the most professional manufacturers of solenoid valves.

With great confidence in our products and services, our factory has obtained orders from all over the world. Our customers are from Australia, USA, Spain, Mexico, Saudi Arabia, Ireland, German, France and Canada.

Our factory manufactures the products as per the ISO9001 quality management system and CE, RoHS, TUV, FDA standards. Our factory has been equipped with advanced processing machines, including CNC digital controlled apparatus. We have a strong R&D team to research and customize products to cater various requirements of customers.

We have been persisting in providing our customers with superior quality products and perfect services by constantly innovating and self-improvement. Customer satisfaction is our unswerving pursuit.
