Prod Model: |
Q11F+1000WOG |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Connection Form: |
Thread |
Channel: |
Straight Through Type |
Structure: |
Floating Ball Valve |
Type: |
Floating Ball Valve |
Material: |
Stainless Steel |
Application: |
Water Industrial Usage |
Product Description

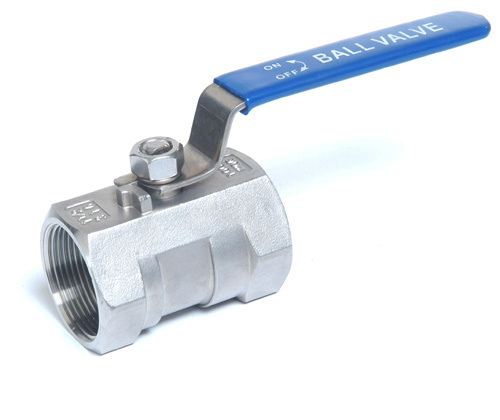

BALL VALVE, 1-PC TYPE
1000 W. O. G.
Standard Port
Blow-out-proof Stem
Body: S. S. /C. S.
Size Range: 1/4"~3"
Temperature: -20 F to 450 F (-29 C to 232 C)
Ends: ANSI B2.1, BS21, DIN259, DIN2999
Locking handle (Optional)
1)Product design drawing:
2)Part material:
3)Features:
|
1/4" |
3/8" |
1/2" |
3/4" |
1" |
1- 1/4" |
1-1/2" |
2" |
2-1/2" |
3" |
d |
5 |
7 |
9 |
12.5 |
15 |
20 |
25 |
38 |
38 |
48 |
L |
39 |
44 |
59 |
60 |
72 |
77 |
84 |
100 |
120 |
142 |
H |
31 |
36 |
42 |
45 |
54 |
89 |
63.5 |
70 |
95 |
103 |
E |
70 |
80 |
95 |
95 |
110 |
110 |
150 |
150 |
200 |
200 |
