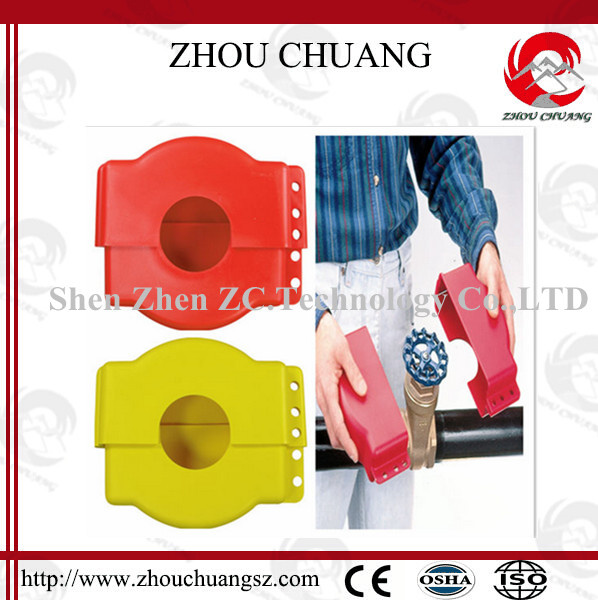

ADJUSTABLE GATE VALVE LOCKOUT
a.Made from durable polypropylene for superior impact and chemical resistance.
b.Place over the gate valve between the two parts and put your lockout padlock.
c.Can replace 3 conventional gate valve lockouts = reduced costs.
d.Lock out gate valve from 25mm to 165mm.
Part Code | Description | Weight | Package |
ZC-F16 | Suitable for 1"--6 1/2" valve rod | 253g | 2 pcs/box |
Gate Valve Lockout
Virtually indestructible valve covers.
Once locked, they rotate freely around the hand wheel & prevent the valve wheel from being turned.
The strong polyurethane plastics make them resistant to cracking and abrasion.
They are resistant to extreme weather and temperature conditions.
Features:
Virtually indestructible valve covers.
Once locked, they rotate freely around the hand wheel & prevent the valve wheel from being turned.
The strong polyurethane plastics make them resistant to cracking and abrasion.
They are resistant to extreme weather and temperature conditions.
Available in 5 sizes (Red color) other colors are available on request - minimum quantity applicable.
3 padlock holes are available in each gate valve lockout device.
Different sizes cover most commonly used valve diameters.
Withstands temperatures from - 20°C to 200°C
Unique knockout center accommodates OS & Y or "rising stem" valves.
Suitable for hasps and padlocks.
Features:
Yellow colour universally mountable injection moulded lockable cylinder valve lockout.
Best for indicating the full or empty cylinders.
Red / Green flaps can be tied / locked with the help of a Padlock.
Cylinder Lockouts can be made in Red or Green colour on request.
Minimum quantity is applicable.
Related Valve Lockouts
Model No | Details |
F01 | Small lockout locks out pipes from 13mm to 64mm in diameter |
F02 | Large lockout locks out pipes from 50mm to 200mm in diameter |
F03 | Small lockout suitable for 1/4'' to 1'' pipes in diameter |
F04 | Large lockout locks out pipes from 1 1/2'' to 3'' in diameter |
F05 | Adjustable Ball Valve Lockout , Suitable for 13-70mm pipes |
F06 | Adjustable Ball Valve Lockout , Suitable for 13-70mm pipes |
F07 | Adjustable Ball Valve Lockout , Suitable for 73-215mm pipes |
F11 | Lockout suitable for 1" --- 2 1/2" valve rod |
F12 | Lockout suitable for 2 1/2" ---5" valve rod |
F13 | Lockout suitable for 5" --6 1/2" valve rod |
F14 | Lockout suitable for 6 1/2"---10" valve rod |
F15 | Lockout suitable for 10" --13" valve rod |
F16 | Lockout suitable for 1" --- 6 1/2" valve rod |
F21 | Lockout suitable for 8mm-45mm valve rod |
F31 | For quarter-turn ball valves |
F32 | For 3.4 or 5-way valves |
F33 | Using cable attachment for gate valves |
F34 | For butterfly valves |
F35 | Universal valve lockout for most valves |
F41 | Lockout suitable for valve diameter under 22mm. |
F42 | Lockout suitable for valve diameter from 23mm to 34.9mm. |
F43 | Lockout suitable for valve diameter from 44mm to 53.9mm. |
F14 | Lockout suitable for valve diameter from 55mm to 63.5mm. |
Our Advantages
a.products, we can help you to design and put into product
b. Protection of your sales market area, ideas of design and all your private information.
c. Enormous market, we can meet all your requirements.
d. Experienced R&D can reach your standard.
e. Well-trained and experienced staffs to give u the best service enjoy.
f. Positive manufacturing production, on time delivery
The choose and buy of security locks:
Locks before delivery is typically after electroplating,
spray or coloring, these steps are favorable for the lock
itself, because through this a series of processing, can form
a layer of protective film on the surface of the lock, can have
the effect of anticorrosion oxidation.By the user that can directly
measure the stand or fall of the locks.
Phase modulation is lighter than feel
Cut corners locks generally adopts hollow inferior materials, not only light weigh in hand, and also feel more bad to use.
The safety standards
For hardware locks at home and abroad have very strict standard
After sales service:
1.At least One year warranty.
2.Within the warranty year,we can fix the product for you for free.
3.Out of the warranty year,we still can fix it for you,but you need to pay a little charge.
4.Customized design is available,accept OEM and ODM.
If you have any question or suggestion,plz contact the service.
Market and Shipment
Our factory are in this line over 6years and produce for ABUS in Germany
which supply for MASTER ,
BRADY in USA ,And also export million dollors each year to Inida market . We supply worldwide
for hundred kinds of lockout tagout .
Valve lockouts are a single,low cost and effective way to prevent
unauthorised operation of valves.It enables different types and sizes
of valves to be locked out.No other device offers such flexibility and
security.All sizes and colors are available.Custo valve lockout can
be made upon request.
When should you LOCKOUT / TAGOUT?
Lockout / Tagout is necessary whenever you are performing service or maintenance in proximity to a machine where you could be injured by:
Unexpected start up of the equipment
Release of stored energy
Two Situations are most likely to need Lockout / Tagout:
When you must remove or bypass a guard or other safety device.
When you must place any part of your body where you could be caught by moving machinery.
Some jobs for which Lockout /Tagout should be used are:
Repairing electrical circuits
Cleaning or oiling machinery with moving parts
Clearing jammed mechanisms
Legislations requires each employer to use Lockout / Tagout equipment. Ultimately, it is up to
us to safeguard all operators and our own life and health by complying with the rules and using
these locking solutions for safety.
For more information of Adjustable gate valve lockout , please feel free to contact us, we will reply you in 8 hours!
Welcome your inquiry, and welcome to visit our factory!!!
why is importance for lockout
Due to the hight rate of industrial accidents caused by unexpected organization, start up od machines or equipment, uncontrolled release of energy, reducing the industrial accidents becomes one of today's most serious issues. LOCKOUT/TAGOUT is a planned safety procedure that disables the energy supply of industrial machinery and equipment whilst servicing, maintenance work or repairs are in progress. Many of industrial accidents can be prevented by proper LOCKOUT/TAGOUT procedures.
Making the right kind of LOCKOUT & TAGOUT equipment available to the employee is the responsibility of the plant's management.
Special Requested
1. may you provide logo us to manufacture.
2. high quality and competitive price.
3. can according to your requested to design new item that suitable for your market.
4. above is only for your reference, we can custom make as per your requested.
5. we sincerely welcome foreign friends who have the need of export.
