| Prod Model: |
2V025 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/8 to 2" |
| Pressure: |
0 to 12 Bar |
| Temperature: |
0 to 150 |
| Seal: |
NBR, Viton, Ptfm |
| Voltage: |
12, 24, 110, 220 |
| Connection Form: |
Thread |
| Valve Structure: |
Direct Action Diaphragm Structure |
| Power Supply: |
AC Solenoid Valve |
| Type: |
Normal Open and Normal Close |

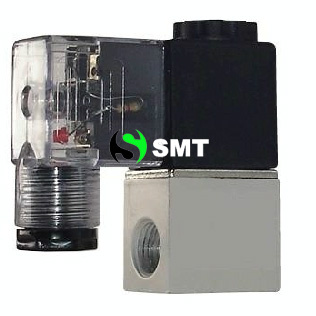

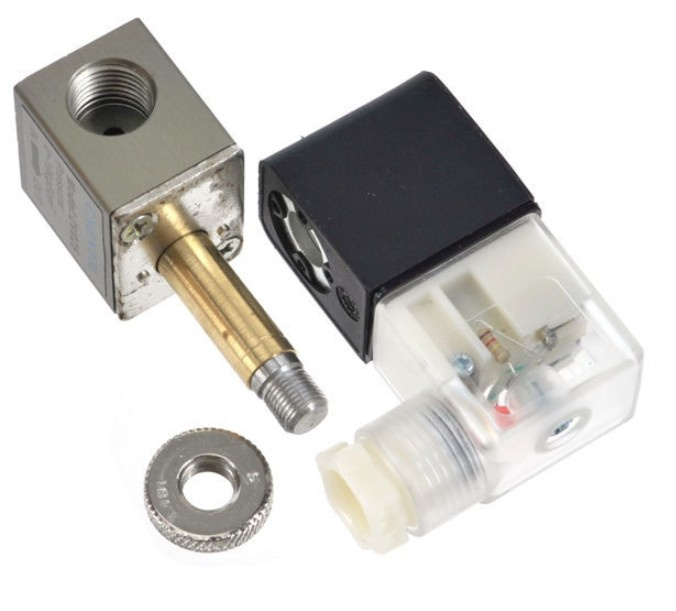

Product Description
- Working medium: air ( filter through 40mm filternet )
- Operation mode: inside guide type
- Place number: five mouth 2 place
- Effective area: 10mm²
- Adapter diameter: inlet=outlet=discharge=M5
- Luricant: no need
- Application pressure: 0-10kgsf/cm²
- Max. pressure proof : 10.5kgsf/cm²
- Working Temp: 5-60°C
- Application Voltage range: ±10%
- Isolation grade: F grade
- Protecion grade: IP65(DIN40050)
- Wiring mode: direct outline or terminal type
- Max.operation frequency: 5 times/s
- Min.excitation time: 0.05s
Application:uesd in latches medical /machine/ toyes etc.
- Game,
Tiger eating angles Coin chooser
- Salar machine
Saler machine coil changer ticket saler
- Office equipment
listing machine computer fax duty printer Photo printer type writer caser drawing machine drinking
- Transport devices
auto door lock safe belt lock car electromagnetic valve
- Domestic appliance
tadioelectronic organ auto weave machine choir
- Other
package machine mechtval hand farming device pressure equipment fir prevention,burglary alarm save water valve
|
ItemType |
2V025-M4 |
2V025-06 |
2V025-08 |
2V025-10 |
2V025-15 |
2V025-20 |
2V025-25 |
|
Fluid |
Air,Water,Oil |
|
Acting |
Direct acting |
Guide type |
|
Type |
Normally closed |
|
Orifice size(mm) |
1 |
2.5 |
13 |
25 |
|
CV value |
0.1 |
0.23 |
6.2 |
23 |
|
Orifice size |
M4 X 0.7 |
1/8" |
1/4" |
3/8" |
1/2" |
3/4" |
1" |
|
Viscosity limit |
Under 20CST |
|
Pressure range |
0.05~0.7MPa |
|
Max.Pressure |
1.2MPa |
1.6MPa |
1.0MPa |
|
Temperature |
-10~80oC |
|
Voltage range |
-10%~+10% |
|
Protection |
IP65 |
|
Power consumption |
AC:6.5VA DC:6W |
|
Insulation |
F class |
|
Material of body |
Aluminum or Brass |
Brass |
|
Seal material |
NBR or VITON |
|
Min activating time |
0.05 sec |
