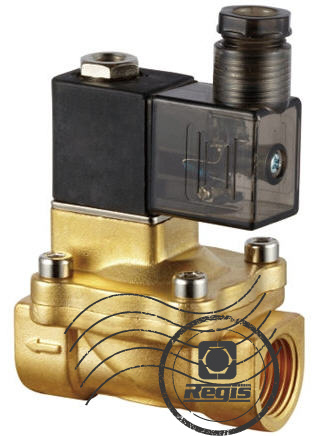

2V130 Series Direct Acting Series Solenoid Valve
Price: |
US $ 6.50/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
5/Piece |
Pay Type: |
L/C,T/T,Western Union |
Prod Model: |
2V130 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Port Size: |
1/4",1/8",1/2",3/4"3/8",1" |
Use Type: |
SMC Substitute |
Type: |
Direct Acting |
Connection Form: |
Thread |
Valve Structure: |
Direct Action Diaphragm Structure |
Power Supply: |
AC Solenoid Valve |
Application: |
Water Industrial Usage |
Product Description
2V Series solenoid valves range from 1/8" to 1". The 2/2 way valves are compactly design, with low weight and working power, which can work under a pressure of 1.0 MPa
Technical Speciafications Medium: Water, Air, Oil(below 20cst) Temperature: -10-80° C Mode of action: Pilot Operated Pressure: Normally Closed(N/C): 8bar Feature: Body Material: Brass Sealing material: NBR Protection Class: IP65 Thread: If different from G Connection, it should be indicated. Flange: If you need, please state "F" in your order Pressure: In case you choose 0.3-16 bar, please state in your order
/ Model |
2V025-06 |
2V025-08 |
2V130-10 |
2V130-15 |
2V250-20 |
2V250-25 |
Working Medium |
\\ / Air, Water, Steam |
Motion Pattem |
/ Direct Drive Type |
/ Guid Type |
Type |
/ Normal Close Type |
mm
Aperture of Flow Ratea |
2.5 |
13 |
25 |
Cv
Cv Value |
0.23 |
6.2 |
23 |
Joint Pipe Bore |
1/8" |
1/4" |
3/8" |
1/2" |
3/4" |
1" |
Operation Fluid Viscosity |
20 CST (Below) |
kgf/cm2
Working-presure |
\\ / Air, Water, Oil : 0~8 |
\\ / Air, Water, Oil : 0.5~7 |
kgf/cm2
Max. Pressure Resistance |
12 |
10.5 |
Operating Temperature Range |
-10~80 |
Voltage Range |
±10% |
Protect Class |
IP65 |
Power Consumption |
AC:7VA/60Hz, 9VA/50Hz, DC:6W |
Insulation |
F (Class) |
Material of Body |
Aluminum or Brass |
/ Brass |
Material of Oil Seal |
NBR VITON |
NBR |
Shortest Excitation Time |
0.05 / second |
