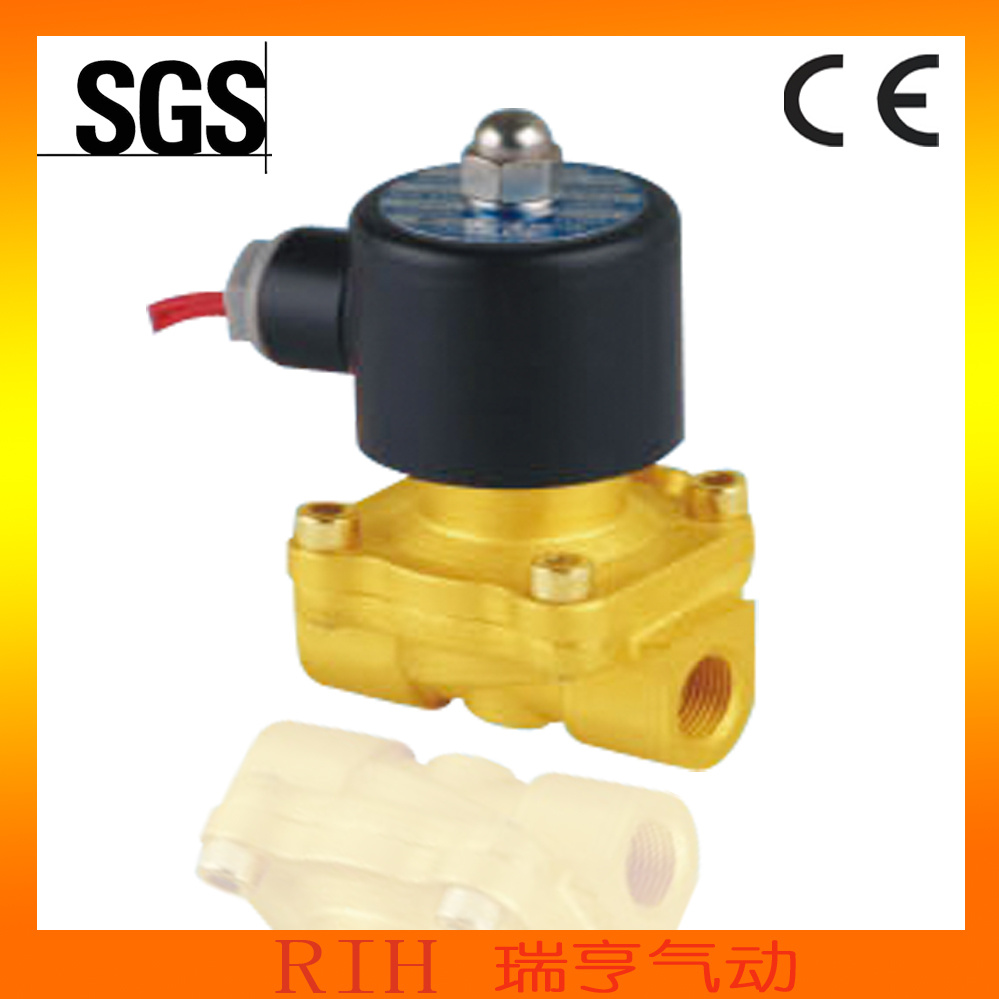

| Prod Model: |
2W250-25 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Zhejiang, China (Mainland |
| Brand Name: |
Rih |
| Working Medium: |
Air Water Steam |
| Motion Pattern: |
Guide Type |
| Valve Type: |
Normal Close Type |
| Operation Fluid Viscosity: |
20cst |
| Working Pressure: |
1~15kgf/Cm2 |
| Max. Pressure Resistance: |
22.50 |
| Operating Temperture Range: |
-5~+180c |
| Action Mode: |
Direct Action Style |
| Type: |
Direct Acting |
| Connection Form: |
Thread |
| Valve Structure: |
Direct-Acting Piston Structure |
| Power Supply: |
AC Solenoid Valve |
| Application: |
Industrial Usage |
Product Description
Specification for type
2W - 025 - 06 AC110V
Specification Bore diamter of flow Joint pipe bore stand voltage
2W two position 025: 2.5mm 06: PT1/8 DC12V
And two airholes 040: 4.0mm 08: PT1/4 DC24V
Electromagnetism 160: 16mm 10: PT3/8 AC24V 50/60HZ
Valve 200: 20mm 15: PT1/2 AC110V 50/60HZ
250: 25mm 20: PT3/4 AC220V 50/60HZ
350: 35mm 25: PT1 AC380V 50/60HZ
400mm: 40mm 35: PT1 1/4
500mm: 50mm 40: 1 1/2
50: PT2
Model
|
2W025-06
|
2W025-08
|
2W040-10
|
2W160-10
|
2W160-15
|
2W200-20
|
2W250-25
|
2W350-35
|
2W400-40
|
2W500-50
|
Working medium
|
Air,water,oil,gas
|
Action mode
|
Direct action style
|
|
Style
|
NC style
|
Flow bore diameter
|
2.5mm
|
4mm
|
16mm
|
20mm
|
25mm
|
35mm
|
40mm
|
50mm
|
CV
|
0.23
|
0.6
|
4.8
|
7.6
|
12
|
24
|
29
|
48
|
Adapter diameter
|
PT1/8
|
PT1/4
|
PT3/8
|
PT3/8
|
PT1/2
|
PT3/4
|
PT1"
|
PT1 1/4"
|
PT1 1/2"
|
PT2"
|
Use of fluid viscosity
|
Below 20 CST
|
Pressure applied kg/cm2
|
Air.water.oil.gas:0-7
|
Water:0-5 Air:0-7 oil:0-5
|
Max compression resistance kg/cm2
|
10
|
Operating temperature°C
|
-5-80
|
Applied voltage range
|
±10%
|
Body material
|
Brass
|
Oil seal material
|
XNBR
|
