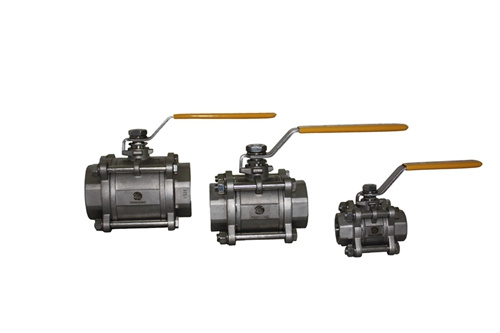

3-PCS Full Port Manual Ball Valve
| Price: |
US $ 5/Piece |
| Trade Terms: |
FOB,CFR |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
CH-010 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Pressure: |
1/4''--2'' 1000psi Wog 2-1/2''--4'' 800psi Wog |
| Working Temperature: |
-60 to 450f |
| End Type: |
Butt Weld /Socket Weld / Threaded End |
| Body: |
CF8m/Wcb |
| Seat: |
PTFE |
| Material: |
Stainless Steel |
| Connection Form: |
Thread |
| Channel: |
Straight Through Type |
| Structure: |
Oil Seal Ball Valve |
| Type: |
Fixed Ball Valve |
| Application: |
Household Usage |
Product Description
manual ball valve:
1-PC manual ball valve
2-PC manual ball valve
3-PC manual ball valve
stainless ball valve, high quality, low price
dimensions
| size | d | l | h | e | c | k | w(kg) |
| 1/4'' | 11.6 | 58 | 50 | 105 | 14 | 37.5 | 0.35 |
| 3/8'' | 12.7 | 58 | 50 | 105 | 17.5 | 37.5 | 0.35 |
| 1/2'' | 15 | 63 | 60 | 135 | 22.7 | 37.5 | 0.56 |
| 3/4'' | 20 | 73 | 64 | 135 | 27.5 | 37.5 | 0.75 |
| 1'' | 25 | 85 | 71 | 170 | 33.5 | 37.5 | 1.035 |
| 1-1/4'' | 32 | 96 | 78 | 170 | 42 | 37.5 | 1.74 |
| 1-1/2'' | 38 | 114 | 86 | 195 | 48.6 | 37.5 | 2.41 |
| 2'' | 50 | 134 | 95 | 195 | 60.5 | 37.5 | 3.66 |
| 2-1/2'' | 65 | 180 | 130 | 255 | 76.3 | 37.5 | 7.1 |
| 3'' | 80 | 200 | 148 | 255 | 90 | 37.5 | 10.5 |
| 4'' | 100 | 228 | 173 | 285 | 106.5 | 37.5 | 19.5 |
Nanjing chaohong is a manufacturer that specilized in the valve, fitting, control system.
Our valve content: Stainless ball valve, butterfly valve, check valve, globe valve, according the power, we have manual valve, pneumatic valve, electric valve.
Our material have CF8M, CF8, CF3M, CF3, the standard have: DIN, ANSI, GB, JIS and so on.
Our product widely used in chemical, food, metallurgy.
