| Prod Model: |
Q11F/Q61F-1000WOG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection Form: |
Thread |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Material: |
Stainless Steel |
Product Description
1)Material: SS304, 304L, 316, 316L
2)Size: 1/4''-4''&DN6-DN100
3)Certificate: ISO9001: 2000

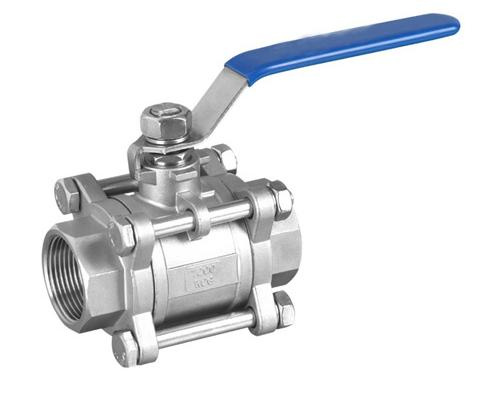

Three Piece Ball Valve Mounting Pad Available
1)Material: SS304, 304L, 316, 316L
2)Size: 1/4''-4'&DN6-DN100
3)Certificate: ISO9001: 2000
4)Working pressure: 1000psi(6.4MPa)
5)Connection Ends: Threaded (Female/Female), Butt welded, Socket welded (BW, SW).
6)Suitable medium: Water, gas, air and some corrosive liquid
Features:
1. Investment casting body and cap.
2. Working pressure 800/1000 psi for W. O. G.
3. Adjustable stem packing
4. Pure Teflon seals and seats
5. Temperature range: -60 to 450 ° F
6. Blow-out proof stem, ball are made of ss316 or customer request
7.100% leakage tested at 100 psi air under water
8. Hydrostatic test pressure: 1500psi
9. Locking device (option).
1)Product drawing:
2)Part material:
3)Features:
|
|
1/4" |
3/8" |
1/2" |
3/4" |
1" |
1-1/4" |
1-1/2" |
2" |
2-1/2" |
3" |
4" |
|
L |
50 |
60 |
75 |
80 |
90 |
110 |
120 |
140 |
185 |
205 |
240 |
|
H |
51.5 |
58 |
64.5 |
67 |
78.5 |
83.5 |
98 |
107 |
133 |
143 |
168 |
|
E |
98 |
98 |
120 |
120 |
150 |
150 |
170 |
170 |
250 |
250 |
305 |
|
L1 |
10 |
10 |
10 |
13 |
13 |
16 |
16 |
17 |
17 |
17 |
20 |
|
S1 |
14.2 |
17.8 |
21.8 |
27.3 |
34 |
42.8 |
48.9 |
61.4 |
74 |
90 |
115.4 |
|
LB |
70 |
70 |
75 |
90 |
100 |
110 |
125 |
150 |
190 |
220 |
270 |
|
B1 |
12.5 |
12.5 |
16 |
21 |
26 |
32 |
40 |
51 |
65 |
80 |
100 |
|
B2 |
18 |
18 |
22.5 |
28 |
34.5 |
43 |
49 |
62 |
76.5 |
92 |
115.5 |
