| Prod Model: |
YZ-018(Q11F-800lb) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection Ends: |
Bw/Sw/Flange/Clamped/Thread |
| Connection Form: |
Thread |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Material: |
Stainless Steel |
| Application: |
Household Usage |
Product Description

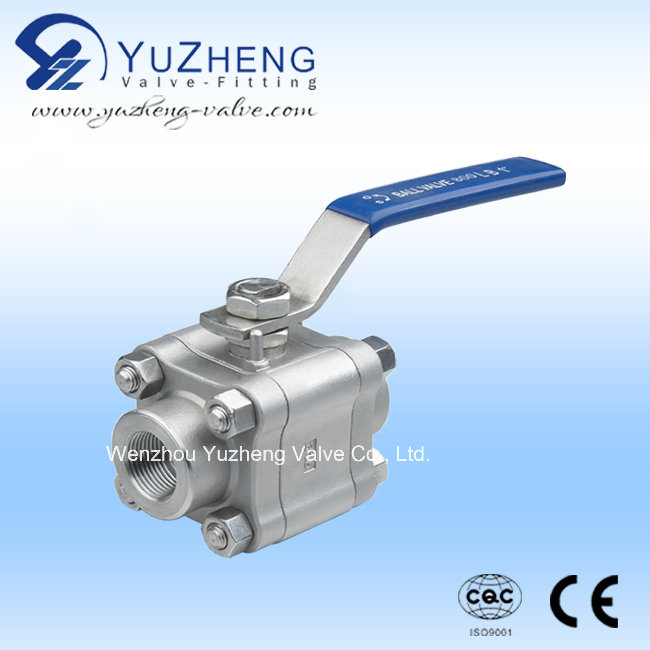

Forged steel 3 pc ball valve & 3 pc forged steel ball valve
1)Material: A105-SS304, 304L, 316, 316L, SS201
2)Size: 1/4''-4'&DN6-DN100
3)Certificate: ISO9001: 2000, CE
4)Working pressure: 800 lb
5)Connection end: Optional BSPT\NPT\DIN2999
6)Suitable medium: Water, oil, gas, air and some corrosive liquid
Product Description
1. Forged body and cap
2. Blow-out proof stem
3. Full bore & Reduce bore
4. Anti-static
5. End connection: Thread(NPT/BSPP/BSPT/PT)/RF/RTJ/BW/SW
5. Locking handle device available
6. Temperature range: -20-232° C-350° C
7. Pure TEFLON seals and seats
8.100% leakage tested at 100 psi aire under water
Standard
Design Acc: BS5351/GB 12237/API 6D/AMSE B16.34
Face to Face Dimension: ANSI B16.10, API 6D
Thread Acc: ANSI B1.20.1
BS 21/2799
DIN 259/2999
ISO 228
Inspection&Testing Acc: API 598/API 6D
Other Information
For any valve inquiry, please specify the following infomation:
1. Valve type and design pressure/temperature
2. ANSI pressure class, Operating temperature, operating / differential pressure
3. Bore Size, pipe schedule ID / OD
4. Body and trim material
5. Medium, Flow rate Min. /Max.
6. Type of end connection
7. Actuation (manual, gear, actuator and type)
