| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Valve Structure: |
Direct-Acting Piston Structure |
| Connection Form: |
Thread |
| Type: |
Pilot Operated |
| Power Supply: |
AC, DC Solenoid Valve |
Product Description
Product Features

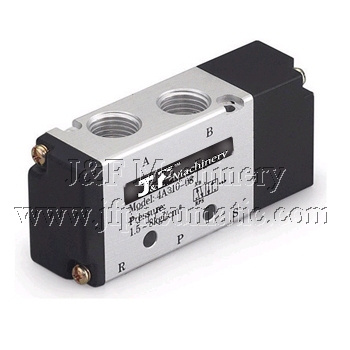

* 5 ports solenoid valve 4A300 series;
* 4A310, 4A320, 4A330C, 4A330E, 4A330P series solenoid valve;
* Internally piloted action, 5 port 2 position or 5 port 3 position;
* Grommet or DIN electrical connector;
* Body: Black anodization, hand anodization, natural anodization
* Voltage: 220V/AC, 110V/AC, 24V/DC, 12V/DC, special voltage is available;
* Port size: 1/4" 3/8;
|
Model |
4V310-08 |
4V320-08 |
4V330C-08 |
4V330E-08 |
4V330P-08 |
4V310-10 |
4V320-10 |
4V330C-10 |
4V330E-10 |
4V330P-10 |
|
|
4A310-08 |
4A320-08 |
4V330C-08 |
4A330E-08 |
4A330P-08 |
4A310-10 |
4A320-10 |
4A330C-10 |
4A330E-10 |
4A330P-10 |
|
Position and Way Number |
Two-position Five-way |
Three-position Five-way |
Two-position Five-way |
Three-position Five-way |
|
Position and Way Number |
Two-position Three way |
Two-position Three-way |
|
Joint Pipe Bore |
Air inlet=Air outlet=Exhaust=G1/4" |
Air inlet=Air outlet=Exhaust=G3/8" |
|
Working medium |
40 Micron Filtered Air |
|
Motion Pressure |
Inner Guide Type |
|
Working Pressure |
0.15~0.8Mpa |
|
Max. Pressure Resistance |
1.2Mpa |
|
Operating Temperature |
5~50 degree centigrade |
|
Voltage Range |
±10% |
|
Power Consumption |
AC:4.5VA DC:3W |
|
Insulatiojn&Protection Class |
F Class.IP65 |
|
Wiring Form |
Lead Wire or Connector Type |
|
Highest Action Frequency |
5 Cycle/Sec |
|
Shortest Excitation Time |
0.05 Second |
