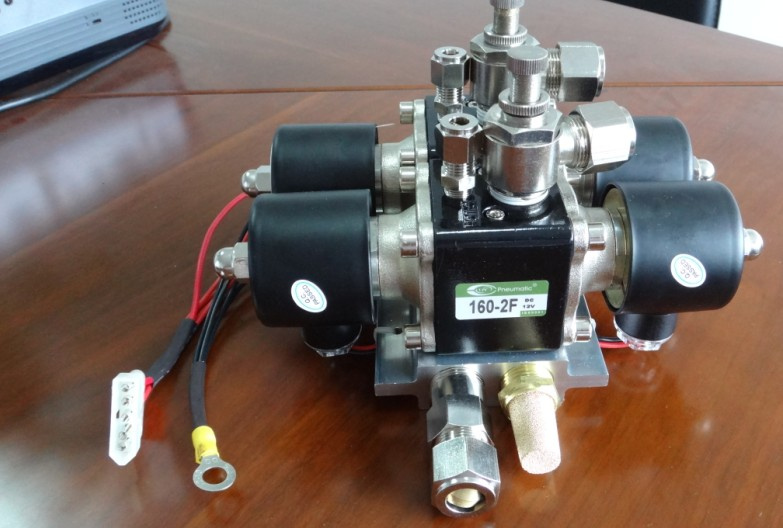

Air Suspension Valve Air Bag Valve 3/8" Brass Air Valves 3-Position 200psi 10mm (3/8") Orifice 40watt Coil 200psi 8-Cyl Air-Engine Manifold Valve -Bare

Prod Model:	160-4F 160-2F 160-F 2W160-15 2W160-10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

1) Competitive advantage product
2) FULL REFUND in case of bad quality or late delivery
3) Payment by PAYPAL
4) Free samples offer & small order welcomed
5) After Sales Service 24 * 7
6) With us your business in safe .
7) With us your money in safe .
Standard or Nonstandard:Standard
Structure:Control
Pressure:High Pressure
Power:Solenoid
Material:Alloy
Temperature of Media:High Temperature
Media:Air
Port Size:1/4" 3/8" 1/2"
Place of Origin:China (Mainland)
Model Number:VVU-3L-4F
Brand Name:VPC
Application:Air Suspension, Air Suspension
Accuair Solenoid Valve Manifolds VU4

The New Design Air Suspension Solenoid Valve (Accuair Solenoid Valve Manifolds)  is engineered to provide the cleanest installation and most reliable operation on the market. This electronic solenoid valve unit inflates and deflates up to (4) individual Air Springs and has built-in push-to-connect 3/8" D.O.T. approved air fittings for all of its plumbing connections. It's more smart than our previous manifolds Assembly Valve Block wiring harness 160-4F Solenoid Valve.

Good replacement to Accuair AA-VU4  Air suspension valve block With E-level

Compatiable Suspension Type	4-Corner Full Air Suspension
Voltage Requirements	10.5-16 Volts
Current Requirements	1.1 Amps (for each of the (8) Valves)
Connectors	IP67 certified (immersion up to 3 ft)
Fitting Size	3/8" D.O.T. / P.T.C (x 8), 1/4" NPT (x 4)
No. of Inlet Ports	2
No. of Exhaust Ports	2
Max Operating Pressure	200Psi
Cv Flow Factor	0.33
Average Adjustment Time	2.2 Seconds (from 10% to 50% of travel

3/8" Brass Air Valves 3-Position 200psi 10mm (3/8") Orifice 40watt coil 200psi 8-Cyl Air-Engine Manifold Valve -Bare

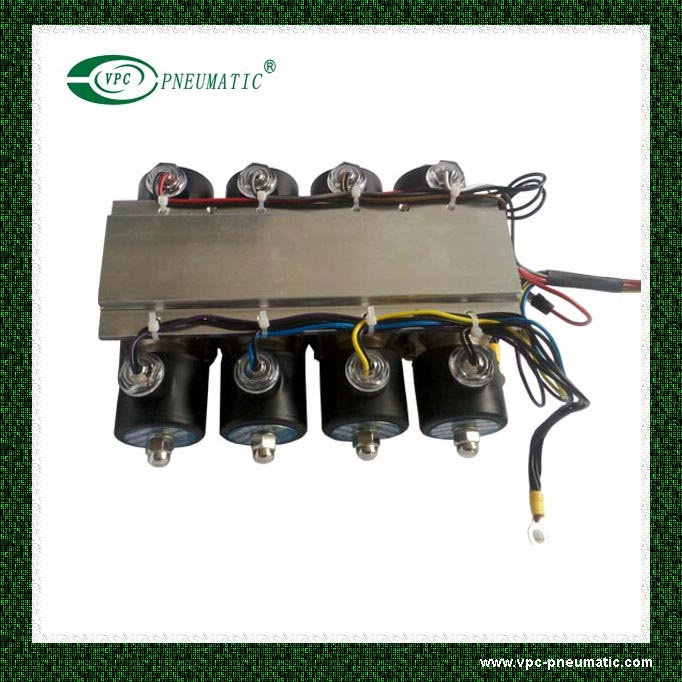

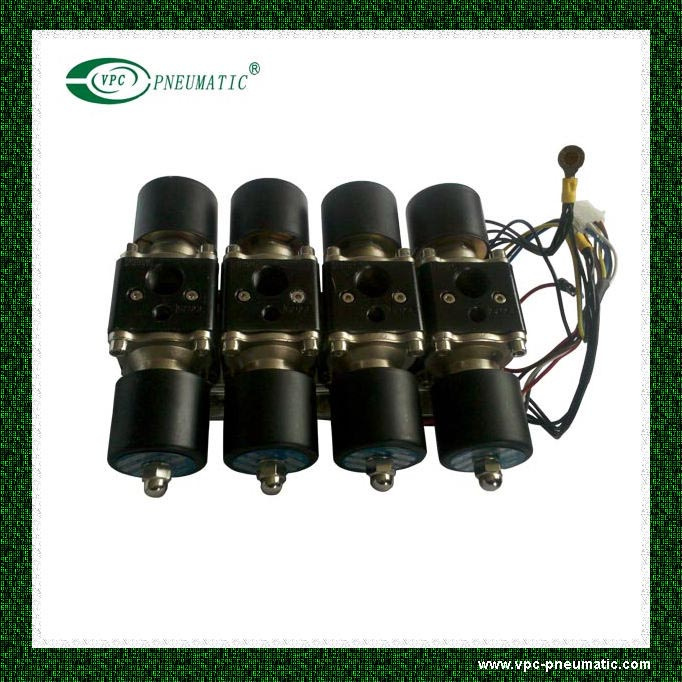

Assembly Valve Block
1. Material: Brass or aluminum alloy
2. With wiring harness
3. Provide custom-built product or service
Assembly Valve Block is combination of 2 way 2 position valves, which is extensively applied in many production trades as automobile, boats and ships etc. The products are sold to distant countries and areas as America, Europe, Southeast Asia etc.
