Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Brand Name: |
Alto |
Model Number: |
U Series |
Refrigerant Type: |
R407c/R410A |
Place Of Origin: |
Guangdong, China (Mainland) |
Delivery Times: |
15 to 30 Days |
Delivery Port: |
Shenzhen/Guangzhou, China |
Heat Source: |
Air-source |
Certification: |
CE |
Work Environment: |
Common Heat Pump |
Application: |
Sauna and Swimming Pool |
Product Description

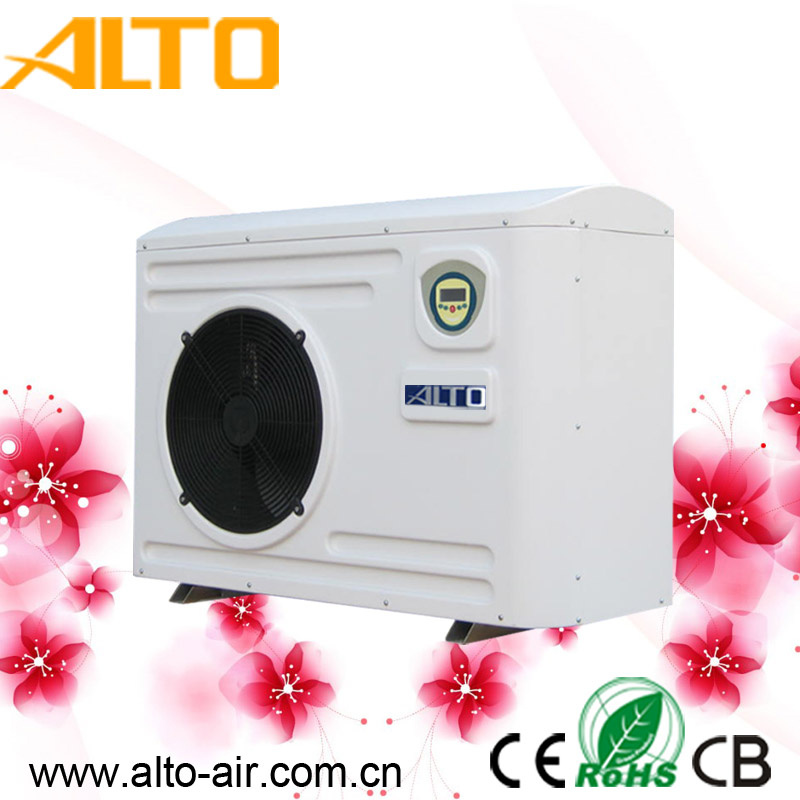

Alto air to water heat pump features:
1. Fashionable shape
Color-elegant design(graceful snow white cabinet and black classic ventilation grille) with fashion arc roof can make your pool charming.
2. Excellent anti-corrosion
Thicken ABS plastic cabinet and ventilation grille with stainless steel bottom plate for perfect anti-corrosion delay its working life.
3. High efficiency
Adopting world famous brand (daikin or SANYO) compressor and perfect application of smooth-running technology, quietly, reliably and efficiently, make the unit cop arrive at 4.5
4. Intelligent controller
Water-proof: Coating with 6mm thickness glue to guarantee the PCB without water damage
Intelligent Heat: Precise temperature control to 1 degree to make sure you can set the desired water temperature
5. Humanity design
Water pump operates 3 minutes each hour to detect current water temperature and lead the heat pump start running to heat or cool water. It can give you the luxury of all year swimming without nobody watching
6. Complete set
Imperial and metric of water inlet/outlet are complete set as friendly service, which makes your installation convenient
Specification |
AS-H50Y |
AS-H60Y |
AS-H60Y |
AS-H70Y |
Refrigerant |
R407c/R410a |
R407c/R410a |
R407c/R410a |
R407c/R410a |
Rated Capacity (heating) |
kw |
15.0 |
17.0 |
17.0 |
20.0 |
Rated Capacity (cooling) |
kw |
12.1 |
16.1 |
16.0 |
17.6 |
Power Input (heating) |
w |
3180 |
3790 |
3700 |
4430 |
Power Input (cooling) |
w |
3030 |
3850 |
3810 |
4320 |
C. O. P |
w |
4.7 |
4.5 |
4.6 |
4.5 |
Power supply |
V/Ph/Hz |
230/1/50 |
230/1/50 |
380/3/50 |
380/3/50 |
Amperage (heating) |
Amp |
14.7 |
17.6 |
7.5 |
8.6 |
Amperage (cooling) |
Amp |
14.0 |
18.1 |
7.8 |
8.1 |
Circuit breaker |
Amp |
30 |
30 |
30 |
30 |
Heat Exchanger |
P/T |
Titanium |
Titanium |
Titanium |
Titanium |
Noise |
db(A) |
≤ 56 |
≤ 56 |
≤ 56 |
≤ 60 |
Water Pressure Drop |
mpa |
≤ 0.4 |
≤ 0.4 |
≤ 0.4 |
≤ 0.4 |
Water flow |
m 3 /h |
2.0~5.0 |
3.0~6.0 |
3.0~6.0 |
4.0~7.0 |
Water connection |
inch/cm |
2.0/5.0 |
2.0/5.0 |
2.0/5.0 |
2.0/5.0 |
Pool Volume |
m3 |
70~100 |
100~130 |
100~130 |
120~150 |
Water-Proof grade |
Type |
IPX4 |
IPX4 |
IPX4 |
IPX4 |
Weight |
kg |
70 |
93 |
93 |
115 |
Dimension |
mm |
1116x830x520 |
1116x830x520 |
1116x830x520 |
1116x830x520 |
Alto is the professional manufacturer of the heat pumps, dehumidifiers, chillers and some other ventilators in South China for more than 10 years.Our main market overseas are Europe, South east Asia and South America.
