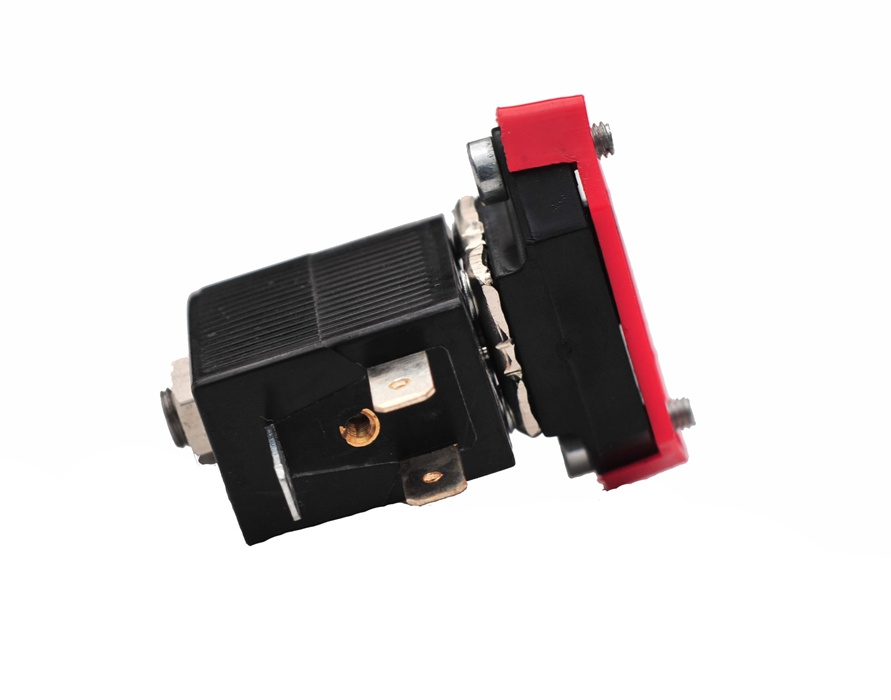

Atlas Copco 220V Burket Solenoid Valve Air Compressor Part
| Price: |
US $ 15/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
| Prod Model: |
24V /110v/220V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Atlas Copco |
| Product: |
Solenoud Valve |
| Part Number: |
1089070214 / 1089070210 |
| Apply: |
Industrial Air Compressor |
| Size: |
3/2 Way / 2/2way |
| Color: |
Red |
| Power: |
AC / DC Power |
| Voltage: |
110V /220 V |
| Warranty: |
Half a Year |
| Delivery: |
5 Working Day After Payment |
| Type: |
Direct Acting |
| Connection Form: |
Thread |
| Valve Structure: |
Direct-Acting Piston Structure |
| Power Supply: |
AC Solenoid Valve |
| Application: |
Air Compressor |
Product Description
Atlas Copco 220V Burket Solenoid Valve Air Compressor Part
Compressor parts --- solenoid valve
220V solenoid valve atlas copco air compressor part
Products Name: solenoid valve
Apply : Screw air compressor
Part number: 2200599753/1089062157
| Characteristic | 1.Pilot operated diaphragm structure with less power comsumption for long time working |
| 2.Applied to pressure system opened from 0.03 Mpa |
| 3.Life span can be over 1 million times |
| Medium | Air, water etc. |
| Temperature | NBR:-10°C to 80 °C |
| EPDM:-10°C to 120 °C |
| VITON:-10°C to 150 °C |
| Pressure | 0.03-1.6Mpa |
| Port size | 3/8'-1' |
| Port thread | G.BSPT,BSP,NPT,PT |
| Orifice | 12,15,20,25mm |
| Voltage | DC-12V,24V |
| AC-24V,120V,240V/60HZ,110V,220V/50HZ |
| Tolerance | ±10% |
| Coils | SA11B,9VA(AC),6W(DC) IP 65,100% ED |
| S91B,22VA(AC),17W(DC) IP65,100% ED |
| Special coils | Latching coil:DC6-24V as requested |
| Material | Body- brass or stainless steel |
| Seal- NBR,EPDM,VITON |
| Amature tube-stainless steel 304 |
| Plunger-stainless steel430F |
| Stop-stainless steel 430F |
| Springs-SS304 |
| Shading rings- stainless steel 304 |
| Business scope |
Mechanical Seal :
| Temperature Sensor | Pressure Sensor
|
| Maintenance Kits | Solenoid Valve | Thermostatic Valve
|
| Air intake | Wheel Gear
| Pressure Maintaining Valve |
| Air Filter | Oil Separator | Oil Filter
|
| Oil Level Indicator | Circuit Board Master Control | Air intake valve |
| Used air compressor | Air-end | Oil level indicator |
