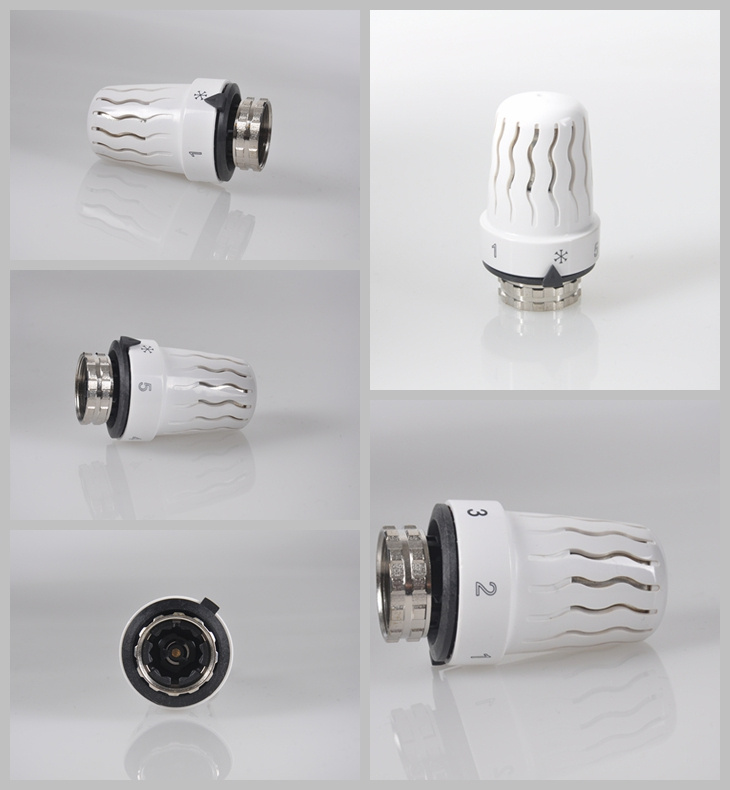

Automatic Thermoastatic Valves Head for Radiator System
| Price: |
US $ 2.1-2.21/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
W-002 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connecting Size: |
M30*1.5mm |
| Temperature Range: |
6-28degree |
Product Description
Automatic Thermoastatic valves head for radiator system1.Approved to EN2152.Passed CE/ISO9001/ISO14001
3.Temperature range:6-28 °C
4.Connection:M30x1.5
5.Limitable and lockable
6.Hysteresis:0.5K
7.Liquid sensor
8.Frost protect " * "
9.Guarantee: 3 years
10.OEM branding available
11.DN15/20/25 available
12.Brass valve body, plastic handle
13.Metrail:ABS/ PC Alloy(head); Brass (valve body)- Chrome/Nickel plated
1.Temperature sensorTemperature hysteresis:1.0 k
Max admissible static pressure:10 bar
Max admissible differential pressure:1.0 bar
Normal pressure:16 bar
Max temperature resistance:110 degree
Temperature extent:6-28°

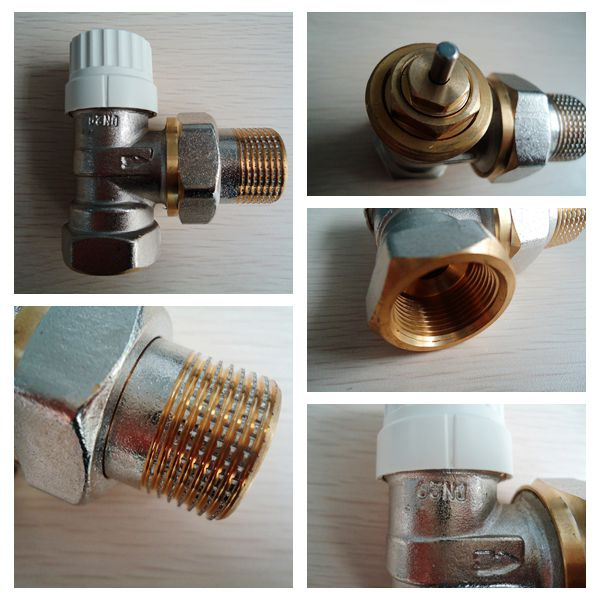

2.Thermostatic valve body
Made of brass, easy to be installed
Low resistance
Water temperature : less than 120 degree
Normal resistance to pressure: 10 barCertificate: EN215 ,CE ,ISO9001:2008, ISO14001:2004Size:DN15/DN20/DN25 Angle/Straight Valve Weight information (valve body only)

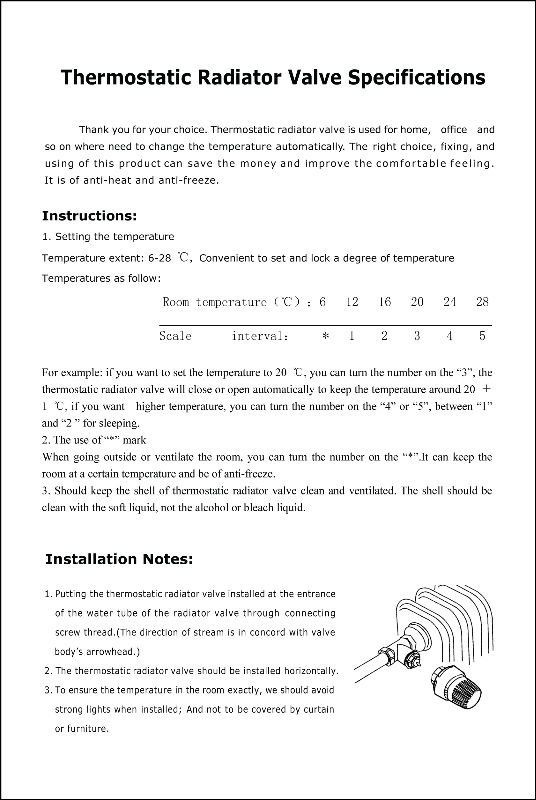

3.Operational Manual
|
DN15 straight valve |
DN15
Angle valve |
DN20 straight valve |
DN20
Angle valve |
DN25
straight valve |
DN25 angle valve |
DN15
3 way valve |
DN20 3 way valve |
DN25
3 way valve |
|
245g |
230g |
315g |
300g |
390g |
370g |
360g |
455g |
600g |
