| Prod Model: |
BV-071-S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Industrial Usage |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Fixed Ball Valve |
| Type: |
Fixed Ball Valve |
| Material: |
Iron |
Product Description

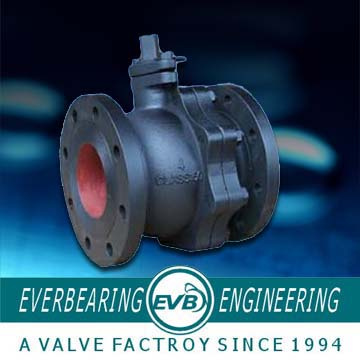

Ball valve
Material: GG25
Trade Term: FOB
Certification: ISO, CE, DQS
Pressure: PN16
PN16 cast iron ball valve, Factroy Price!
|
Number |
Part Name |
Material |
|
1 |
Body |
Grey Cast Iron(GG25 or GGG40) |
|
2 |
Bonnet |
Grey Cast Iron(GG25 or GGG40) |
|
3 |
Nut |
Carbon Steel |
|
4 |
Bolt |
Carbon Steel |
|
5 |
Ball |
Stainless steel(x10cr13) |
|
6 |
Seat |
PTFE |
|
7 |
Stem |
Stainless steel(x10cr13) |
|
8 |
Gland |
Cast Iron(GG25 or GGG40) |
|
9 |
Gland Bolt |
Carbon Steel |
|
10 |
Stop Collar |
Carbon Steel |
|
11 |
Lever |
Ductile Iron(GGG40) |
PN16 ductile iron ball valve Dimensions
Norminal diameter
in mm |
Length |
Height |
Diameter of flange |
|
1/2″ |
15 |
115 |
78 |
95 |
|
3/4″ |
20 |
120 |
113 |
105 |
|
1″ |
25 |
125 |
107 |
115 |
|
1 1/4″ |
32 |
130 |
113 |
140 |
|
1 1/2″ |
40 |
140 |
130 |
150 |
|
2″ |
50 |
150 |
146 |
165 |
|
2 1/2″ |
65 |
170 |
176 |
185 |
|
3″ |
80 |
180 |
222 |
200 |
|
4″ |
100 |
190 |
222 |
220 |
|
5″ |
125 |
325 |
257 |
250 |
|
6″ |
150 |
350 |
275 |
285 |
|
8″ |
200 |
400 |
400 |
340 |
Everbearing Engineering Co., Ltd. is a manufacturer of various valves with well-equipped testing equipment and strong technical force.
Since 1994, We have passed API-Q1, and gotten the ISO 9001: 2000 certification. And after years of experience in supplying valves abroad, Everbearing has been recognized as a skilled and credible supplier with most-trusted, highest-quality products.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in water, oil, gas and other industries.
Sincerely, we hope to make Everbearing brand as a famous brand with domestic and international customers. And we do our best to improve Everbearing as a high-class valve manufacturer.
We are looking forward to establishing relationships with you in the near future.
