| Prod Model: |
WJ61H |
| Thread Position Of Valve Rod: |
Inside Gate Valve |
| Seal Surface: |
Wedge Gate Valve |
| Material: |
Carbon Steel |
| Connection Form: |
Folder |
Product Description

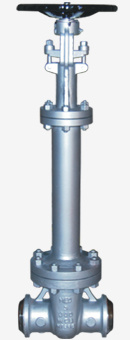

BELLOWS SEALED GATE VALVE
Size: NPS 1/2"-24"
Pressure: Class 150-800
Material: 1/2"-2": A105, LF2, F304, F316, F304L, F316L
2"-24: WCB, LCB, CF8, CF8M, CF3, CF3M
Bellows Material: 304, 316, Inconel, Monel
Design & Manufacture Std: API600, API6D
Face to Face Std: ASME B16.10
End Connection Std: ASME B16.5, DIN2543-2545
Test Standard: API598, API6D
Structure Type: Forged steel, Cast steel,
Operated Way: Handwheel, Bevel Gear, Pneumatic, Electric
